Description

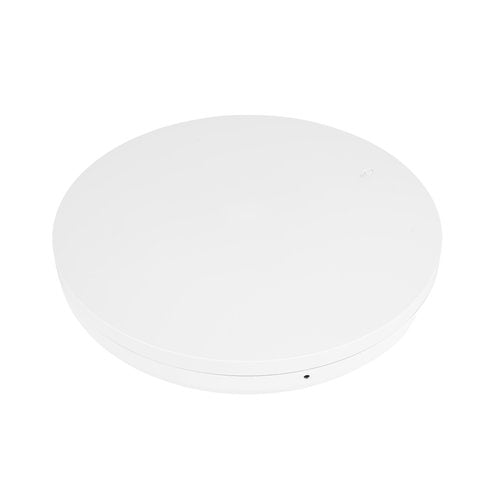

The Araknis Networks AN-830-AP-I Wi-Fi 7 Indoor Access Point delivers enterprise-grade wireless performance engineered for modern homes and commercial networks. Featuring tri-band multi-gig throughput, an expanded 6 GHz spectrum, and a 10 Gbps LAN uplink, it eliminates network bottlenecks to provide ultra-low latency streaming, conferencing, and device connectivity.
Equipped with built-in OvrC cloud management, this high-performance access point allows professionals to optimize settings, tune channels automatically, and configure wireless bridge mode remotely. Designed for demanding multi-device environments, it ensures reliable coverage and robust WPA3 security across existing and next-generation wireless deployments.
Key Features
Brand
Araknis Networks
Model Number
AN-830-AP-I
Product Type
Access Point
Product Series
830
Wi-Fi Generation
Wi-Fi 7
Wireless LAN Standard
802.11be
Network Technology
10GBase-T
Antenna Type
Omnidirectional
Antenna Gain
6 dBi
Power Over Ethernet
IEEE 802.3bt (60W PoE required for full functionality)
Power Consumption
49W
Input Voltage
12V DC
Security Standards
WPA3, WPA3-SAE, WPA2 AES, WPA2-PSK AES, OWE, Open
Dimensions
23.6 cm x 23.6 cm x 4.8 cm
Weight
1.8 kg
Country of Origin
Taiwan, Province of China. Country of origin is subject to change.
Highlights
Tri-band 4x4 Wi-Fi 7 performance for high throughput and reliable connectivity
Multi-gig Wi-Fi 7 throughput for faster streaming and conferencing
Expanded 6 GHz spectrum for wider channels and reduced congestion
10G uplink providing high-density, multi-gig deployment support
Optimized RF design for enhanced coverage and reduced dead zones
Consistent performance under load with many connected devices
Enterprise-grade WPA3 security for data protection
Built for long-term stability and always-on operation
AI-powered automated channel tuning for optimized wireless environment
Wireless bridge mode for extending coverage without Ethernet wiring
Compatibility
Compatible with standard Wi-Fi 7 (802.11be) devices and backward compatible with existing Wi-Fi 6 deployments. Requires an IEEE 802.3bt (60W) PoE power source for full feature operation.
Warranty
2-Year Limited Warranty: This Araknis product has a 2-Year Limited Warranty.
The AN-830-AP-I requires 60W PoE (802.3bt) for full functionality. Operating on 30W PoE (802.3at) will place the unit into limited functionality mode.
What network speeds does the Ethernet uplink port support?
The access point includes a 10 Gbps LAN uplink port (10GBase-T) to support high-density and multi-gigabit deployments.
Can the access point be managed remotely?
Yes, it features built-in OvrC support for remote cloud-based monitoring, automated channel tuning, and setup.
What wireless security protocols are supported?
It supports enterprise-grade wireless security options including WPA3, WPA3-SAE, WPA2 AES, WPA2-PSK AES, OWE, and open networks.
