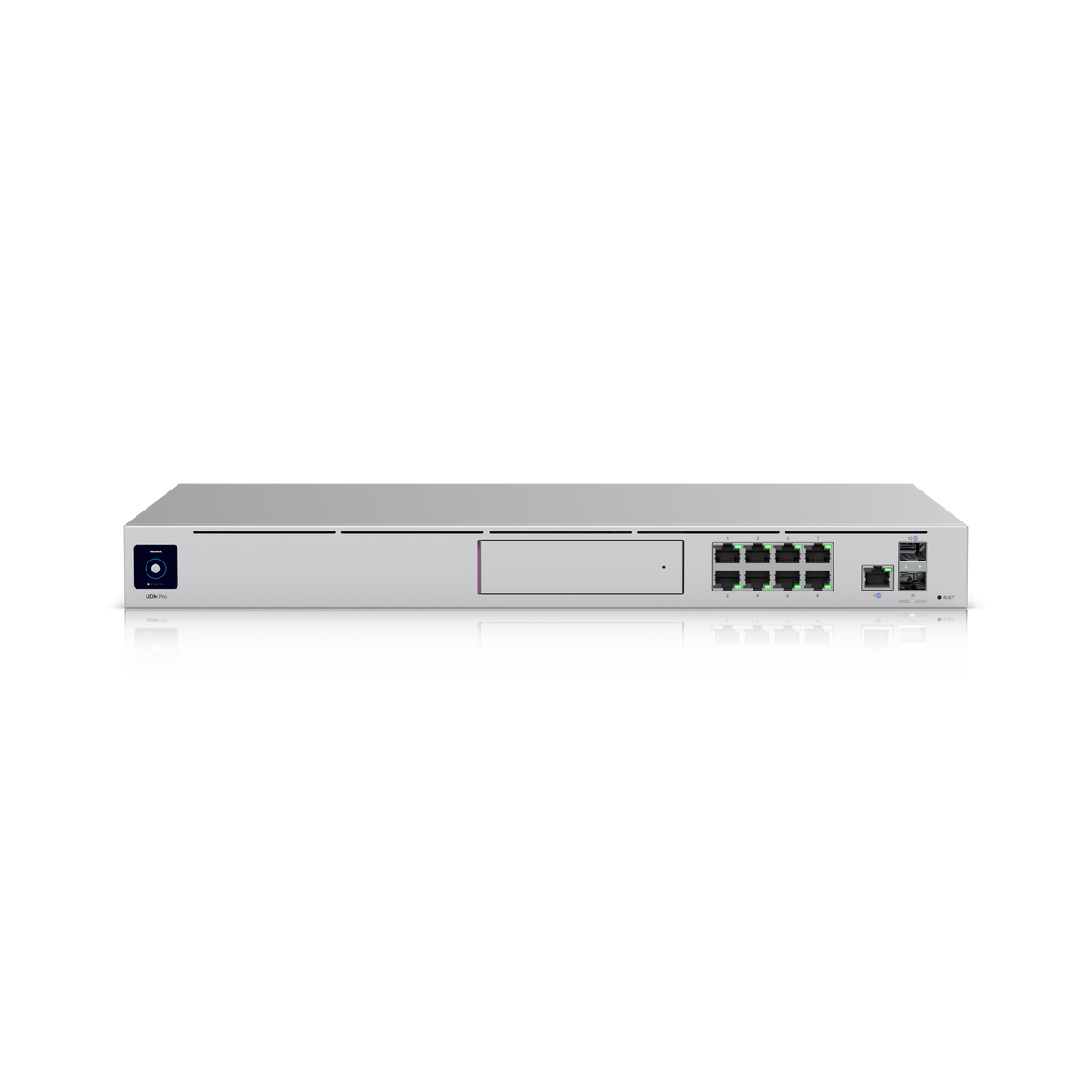

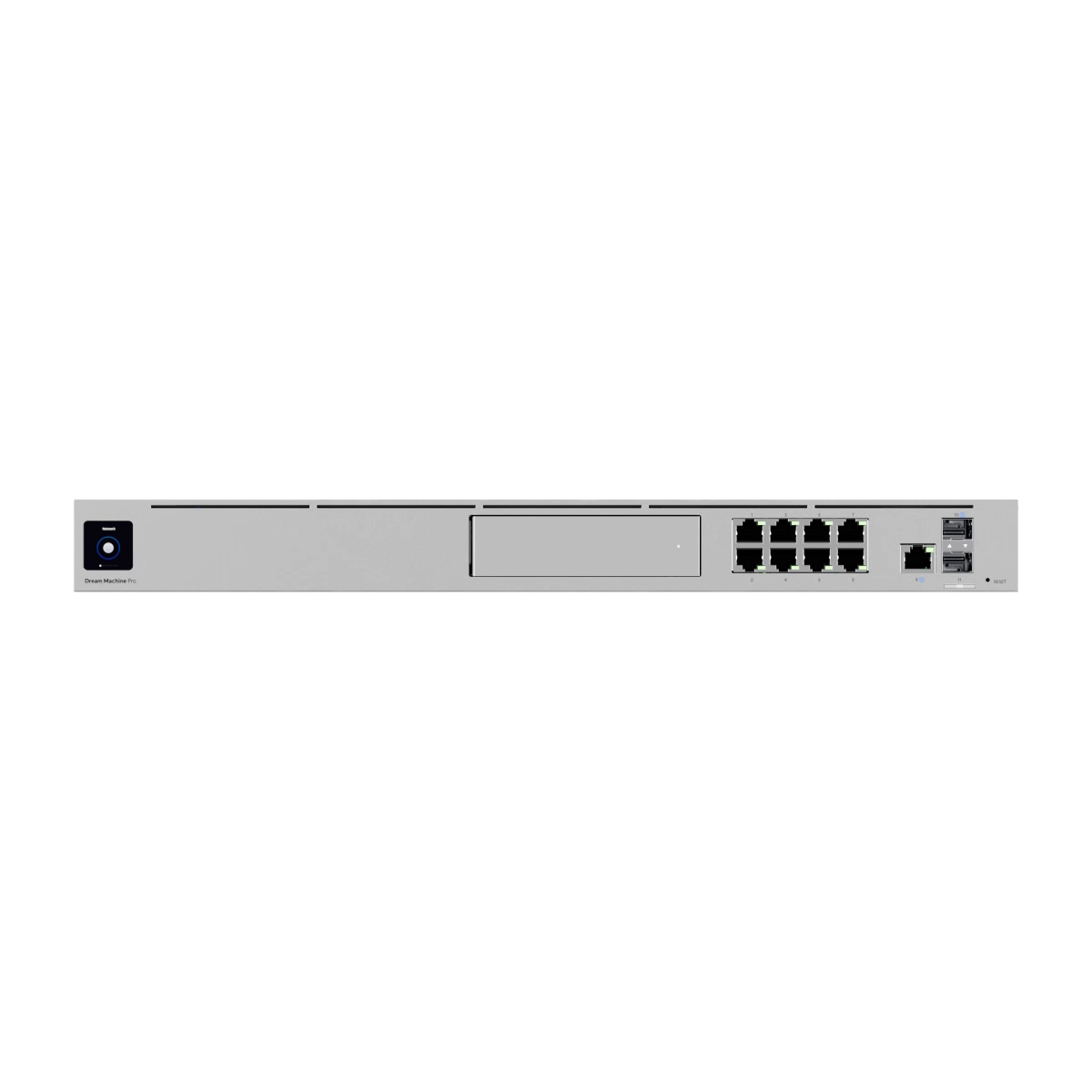

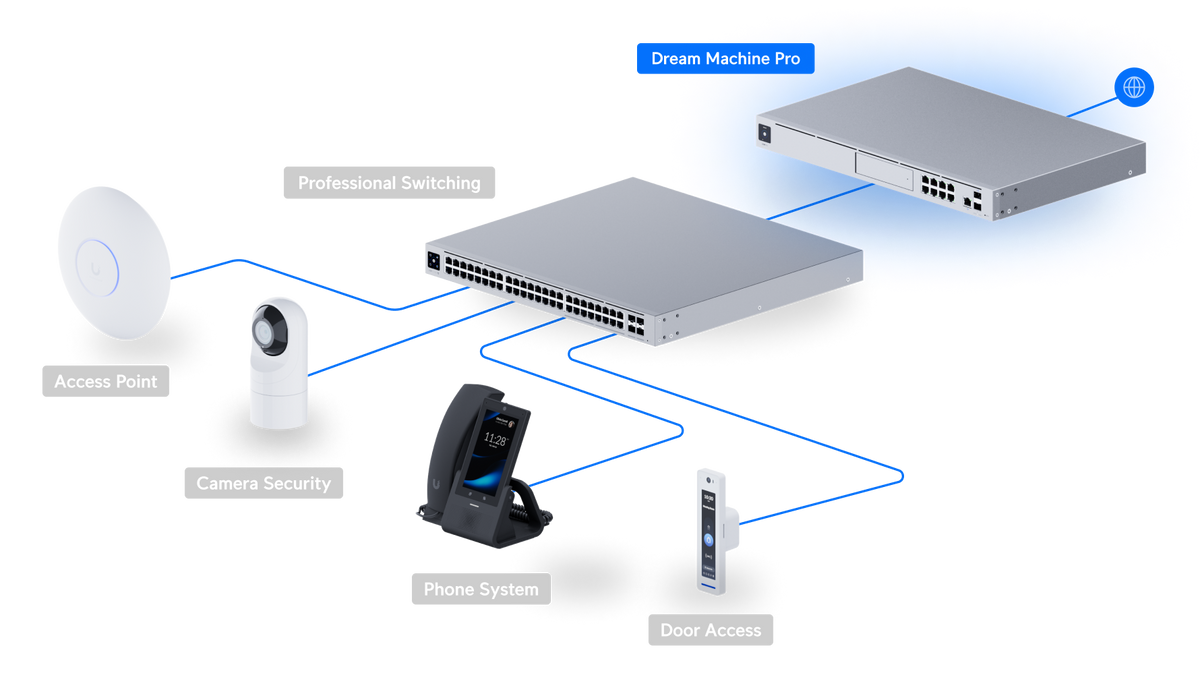

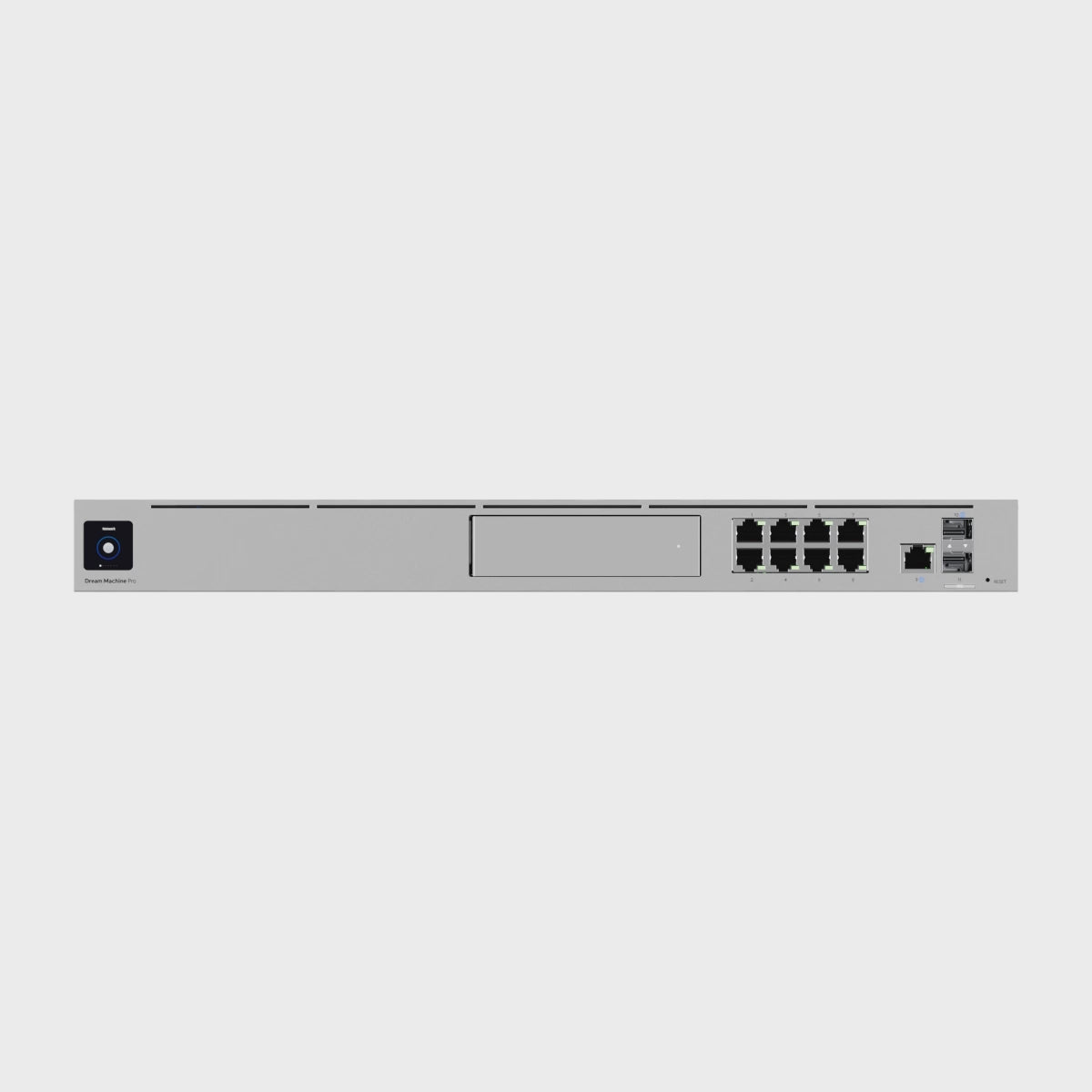

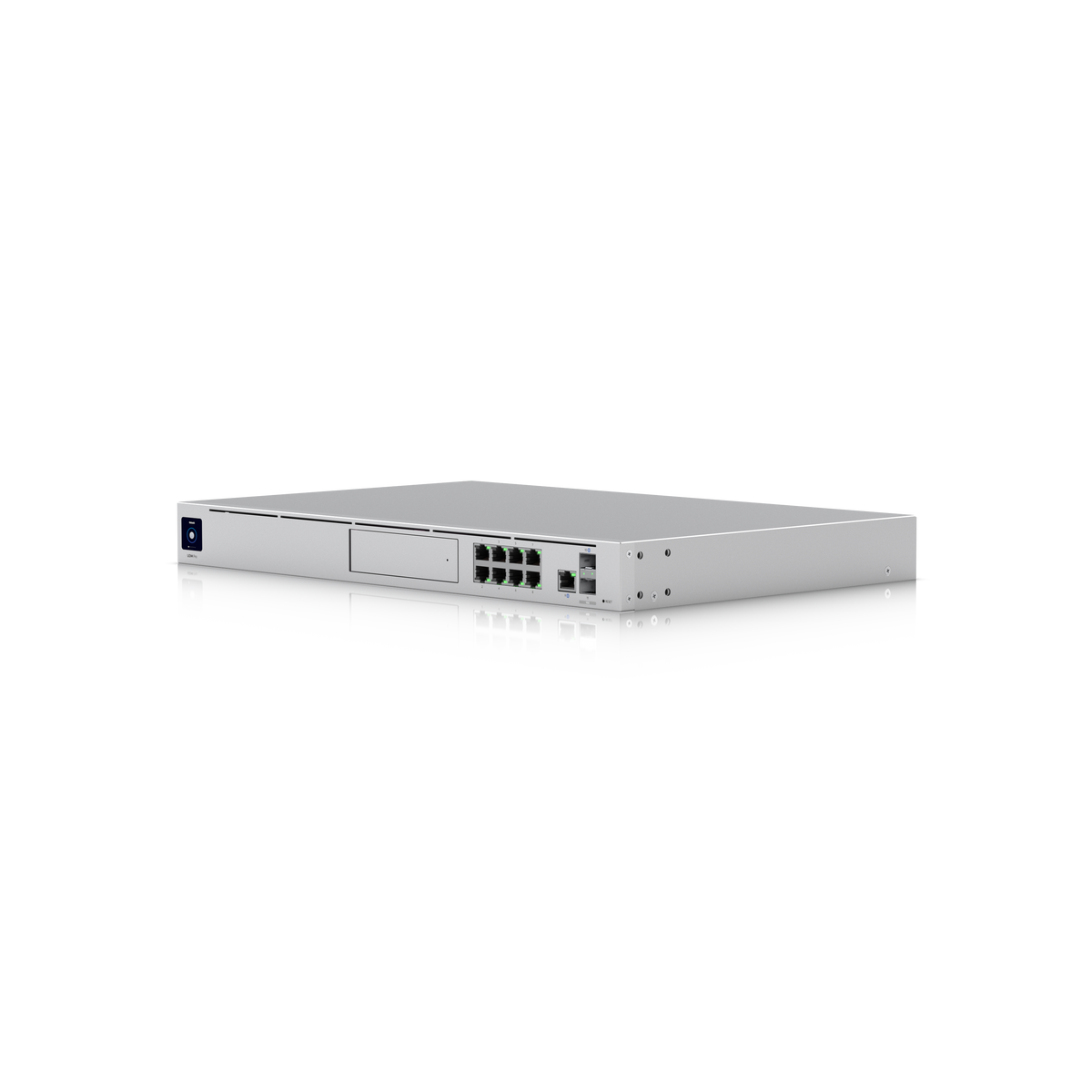

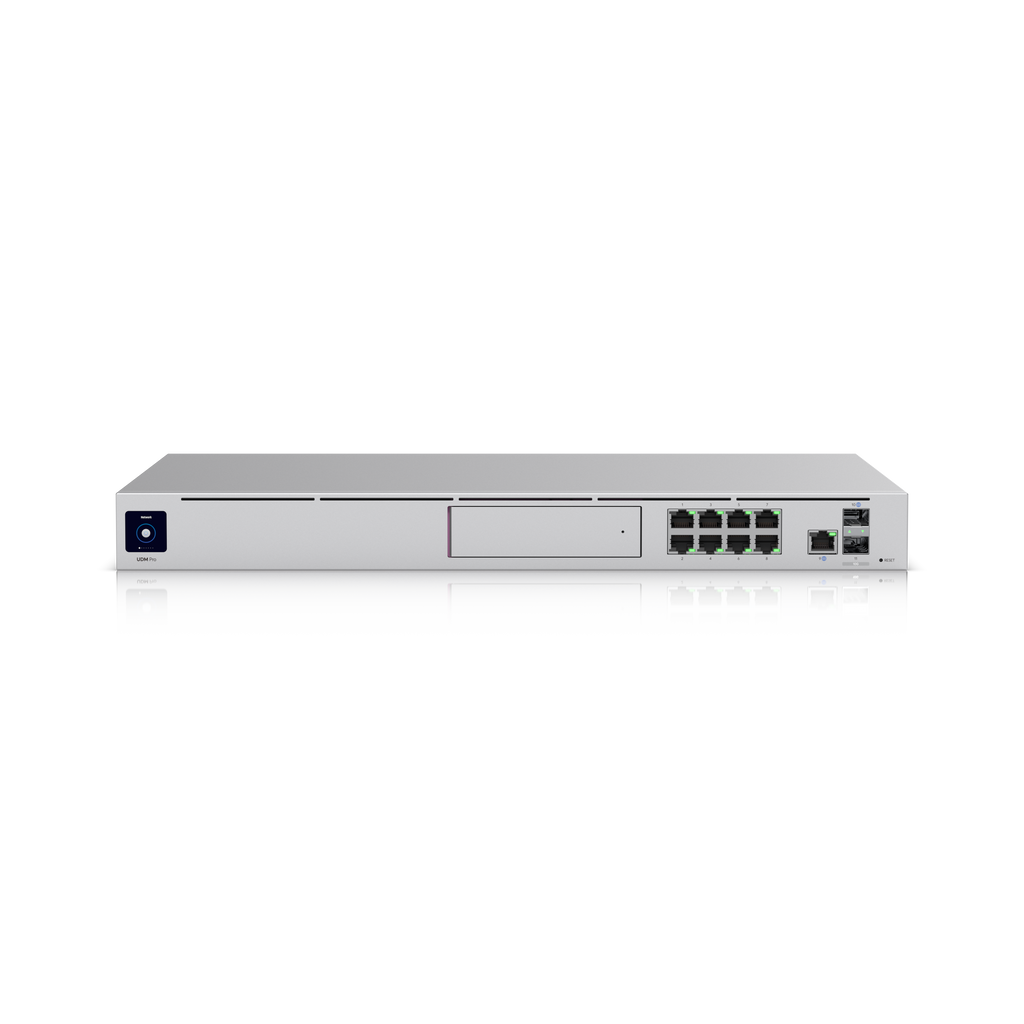

The Ubiquiti UniFi Dream Machine Pro is an all-in-one enterprise network gateway designed for large-scale environments. It features 10G SFP+ and Gigabit RJ45 connectivity, delivers 3.5 Gbps routing with full IPS/IDS threat protection, and seamlessly manages over 100 UniFi devices and 1,000 connected clients.
Equipped with an integrated 3.5" HDD bay, this rack-mountable console runs the complete UniFi application suite for robust network control and UniFi Protect video surveillance. With dual-WAN redundancy, advanced layer 7 firewall filtering, and a 1.3" status touchscreen, it provides high-performance infrastructure management.
Key Features
Brand
Ubiquiti
Form Factor
1U Rackmount
IDS/IPS Throughput
3.5 Gbps

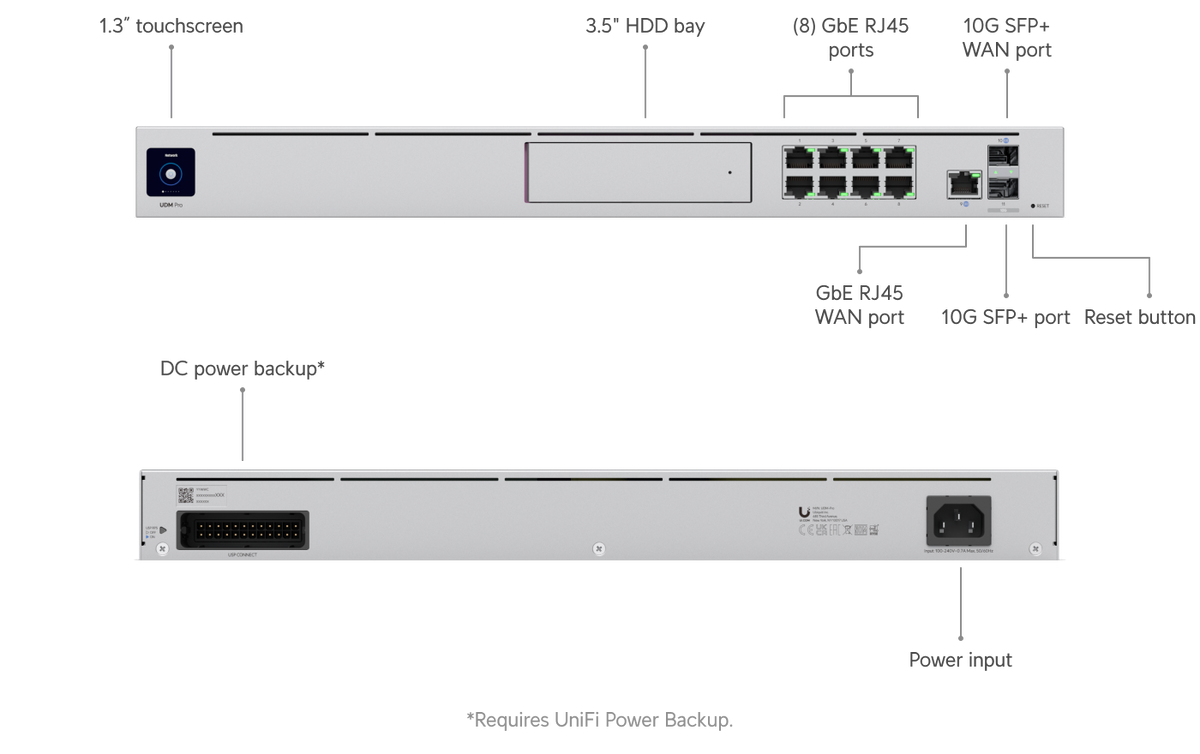

LAN Ports
(1) 10G SFP+, (8) 1 GbE RJ45
WAN Ports
(1) 10G SFP+, (1) 1 GbE RJ45
Hard Drive Bay
(1) 3.5" SATA HDD Bay
Processor
Quad-core ARM Cortex-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB
Display
1.3" Touchscreen
Max. Power Consumption
33W
Power Supply
Internal 50W AC/DC
Enclosure Material
Aluminium CNC, SGCC Steel

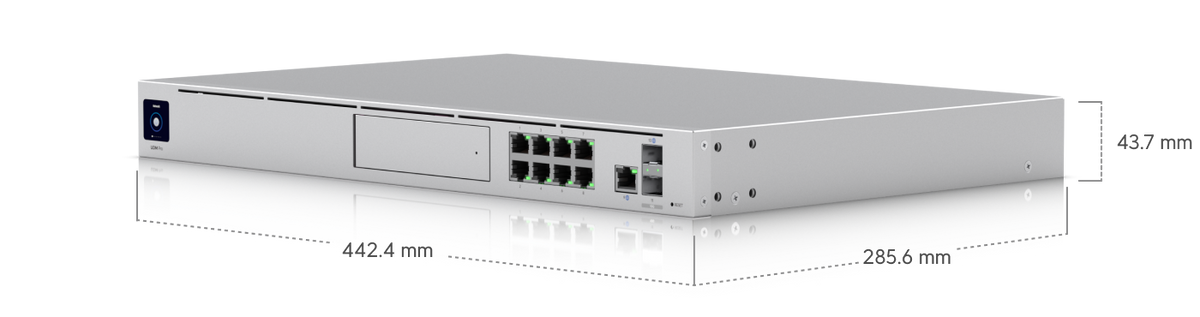

Dimensions
44.2 x 28.6 x 4.4 cm
Weight
3.9 kg
Highlights
Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+*, (8) GbE RJ45 LAN ports
(1) 10G SFP+*, (1) GbE RJ45 WAN ports
3.5" NVR HDD bay
UniFi Power Backup ready
1.3" touchscreen
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Videos
Compatibility

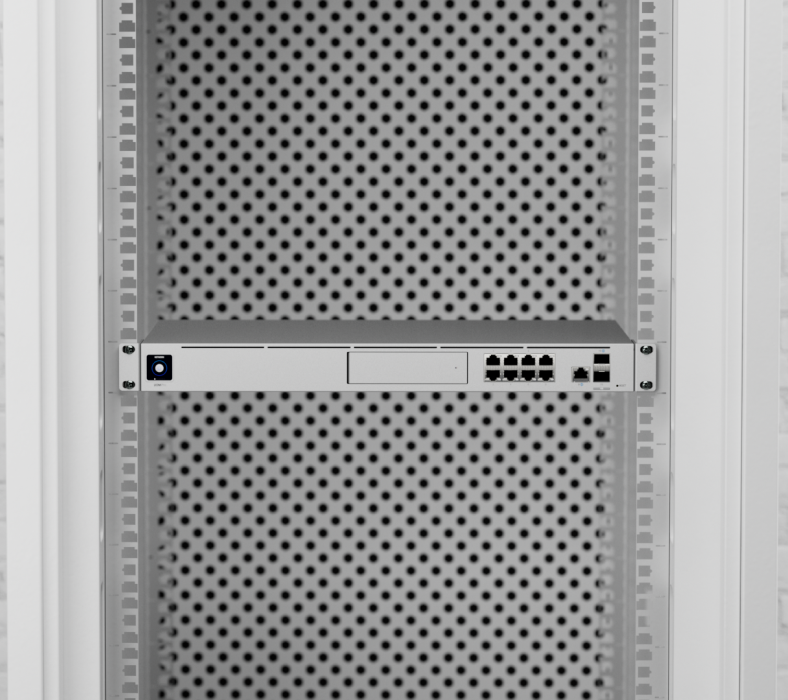

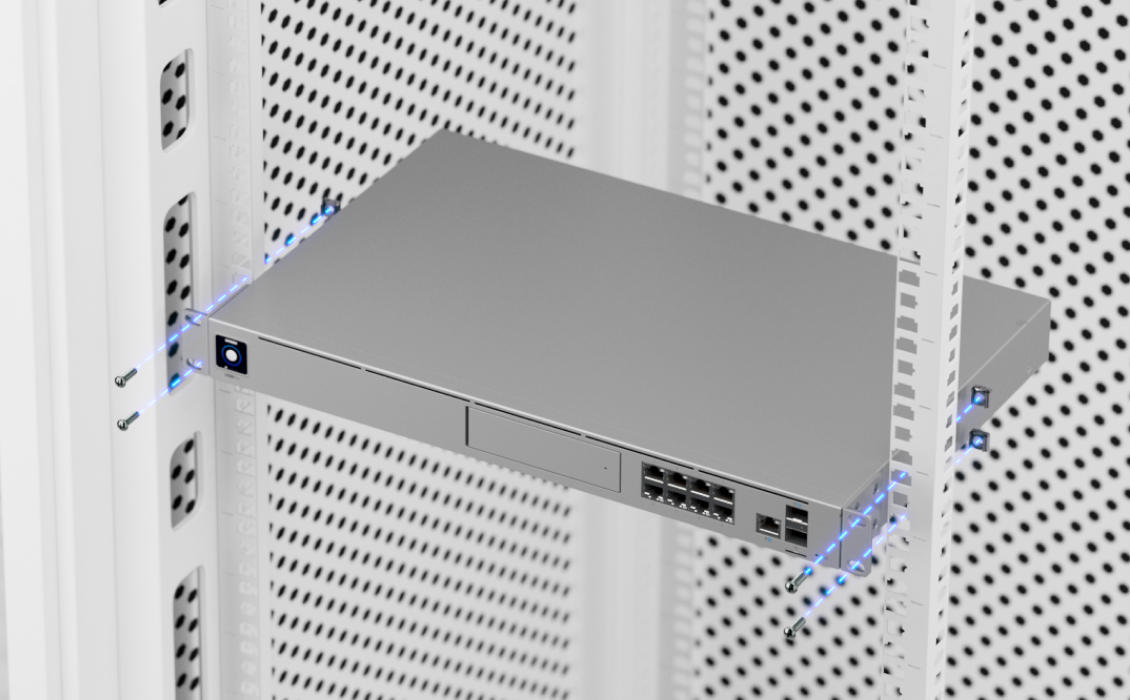

Compatible with standard 19-inch equipment racks (1U height) and pairs with official SFP+ modules or SFP+ to RJ45 adapters for 10G connectivity. Fully supports the UniFi application suite including UniFi Network, Protect, Access, Talk, and Connect.
Frequently asked questions
What routing throughput does the Dream Machine Pro support with security features active?
It provides 3.5 Gbps routing throughput with full Intrusion Detection System (IDS) and Intrusion Prevention System (IPS) enabled.
What network interfaces are available on the Dream Machine Pro?
The device includes two 10G SFP+ ports (one WAN, one LAN), eight 1 GbE RJ45 LAN ports, and one 1 GbE RJ45 WAN port.
Does the Dream Machine Pro include storage for UniFi Protect security cameras?
Yes, it features an integrated 3.5" SATA hard drive bay to support local NVR storage for UniFi Protect camera deployments.
How many UniFi devices and client connections can it support?
It supports over 100 managed UniFi devices and more than 1,000 simultaneous client connections.
