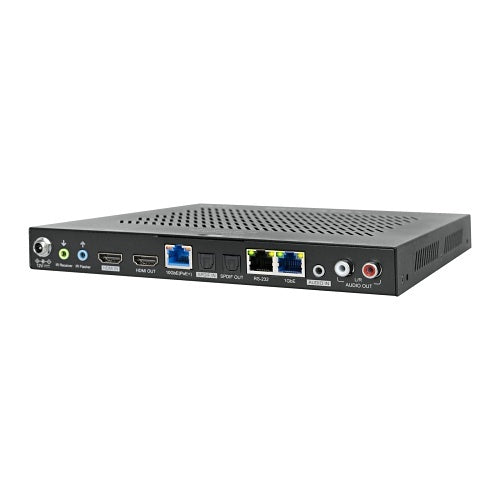

The Binary B-960-MOIP-4K-TR 960 Series Media over IP Transceiver provides reliable 4K60 4:4:4 HDR10 and Dolby Vision video distribution across 10GB networks with advanced audio routing capabilities. Featuring simultaneous transmission and reception within a single chassis, it seamlessly integrates local sources into decentralized or traditional MoIP systems while supporting dynamic video wall configurations.
Equipped with built-in video scaling, this SDVoE-enabled transceiver delivers content across mixed 4K and 1080p displays with zero latency and full pass-through for premium audio formats like Dolby Atmos and DTS:X. Integrated OvrC remote management simplifies configuration, system monitoring, and firmware updates for streamlined professional AV installations.
Key Features
Brand
Binary
Model Number
B-960-MOIP-4K-TR
Product Type
Transceiver
Product Line
MoIP
Product Series
960, MoIP
Bandwidth
10Gbps
Graphics Modes
4K UHD
High Dynamic Range (HDR)
Yes
High Dynamic Range (HDR) Type
HDR10
Number of HDMI Ports
1
OvrC Enabled
Yes
Dimensions
21.5 cm x 2.5 cm x 21.5 cm
Operating Temperature
0 to 40°C
Storage Temperature
-20 to 60°C
Operating Humidity
20-90% RH (Non-condensing)
Certifications
CE, FCC, UL
Warranty
2-Year Limited
Highlights
Add Stunning 4K60 Video to Any Room: The MoIP 960 Series enables distribution for 4K60 4:4:4 HDR10 and Dolby Vision video content with significantly reduced compression via 10GB network compatibility.
Greater Setup Flexibility: The 960 Transceiver is a receiver and transmitter in a single chassis. The Transceiver can send and receive content simultaneously or it can be utilized as a dedicated encoder or decoder. This flexibility enables a local source like a Blu-ray player or game console to be introduced into the network for use by other MOIP endpoints.
Impressive Video Walls: Group 4, 9, or 16 displays together to create video walls. Configuration does not require individual device programming.
Fast Switching: With 10GB compatibility, video sources can be changed with minimal lag time for a smooth viewing experience.
SDVoE Enabled: The MoIP 960 Series features SDVoE, the industry standard for AVoIP solutions. SDVoE provides for A/V extension, processing, switching, and control with zero-latency, common control APIs, and interoperability.
Flexible and Scalable: The Binary MoIP solution allows for scaling and upgrading to match specific system needs. Transmitters or receivers can be added to accommodate additional sources or displays.
Ultra-Reliable HDR: Legacy EMI interference and HDCP/EDID issues are eliminated. Each source is encoded and visually lossless at the highest quality possible (e.g., 4K HDR). At each display, the signal is decoded from the network and scaled to the desired resolution (e.g., 1080p or 4K HDR). Built-in scaling in the TR and RX ensures that mixed 1080p/4K systems are supported, and pass-through of all audio formats like Dolby Atmos and DTS:X are fully supported.
Compatibility
Compatible with Binary MoIP ecosystems, SDVoE standard systems, Araknis 920 10GB switches, OvrC remote management, and popular control systems supporting RS-232 and IR integration.
Warranty
2-Year Limited Warranty: This Binary product has a 2-year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty does not apply to products that have been abused, modified, or disassembled.
