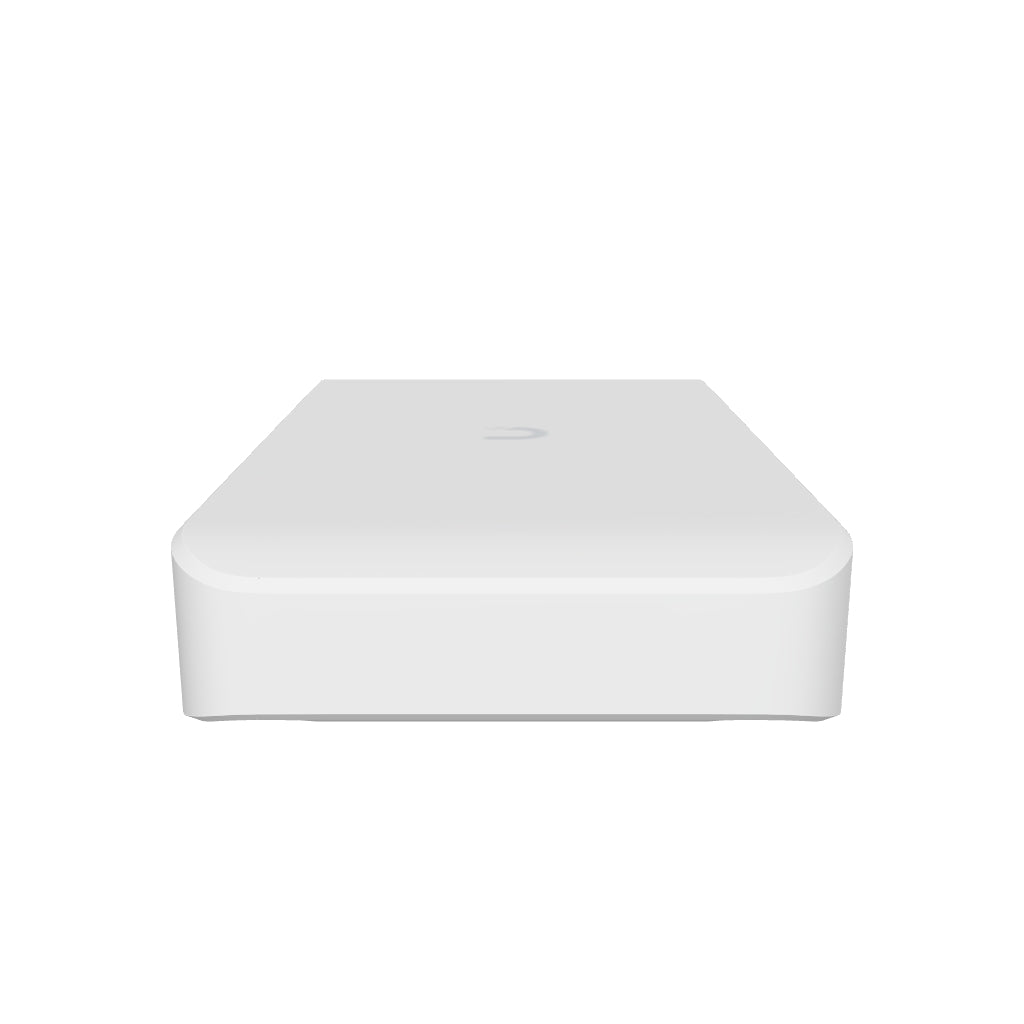

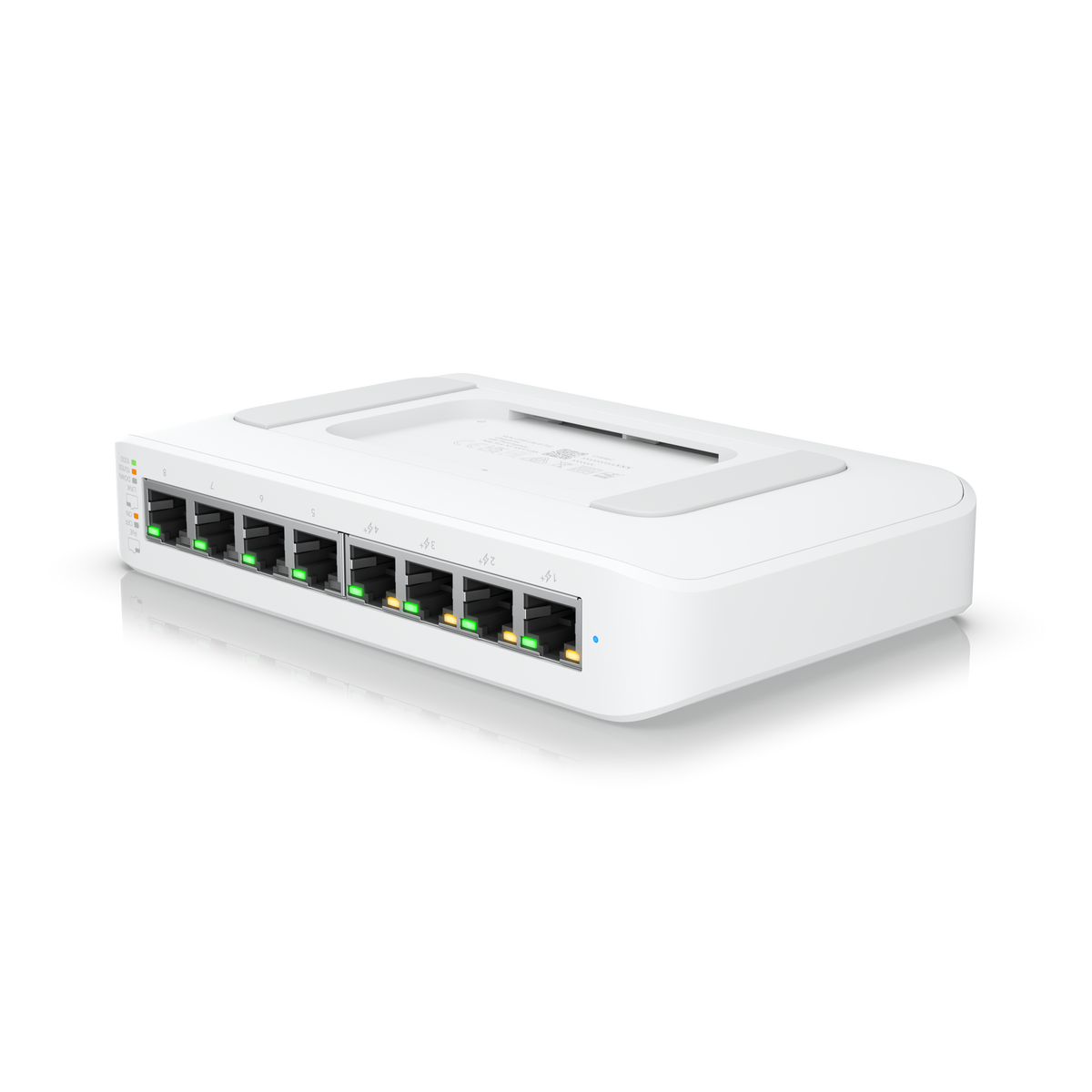

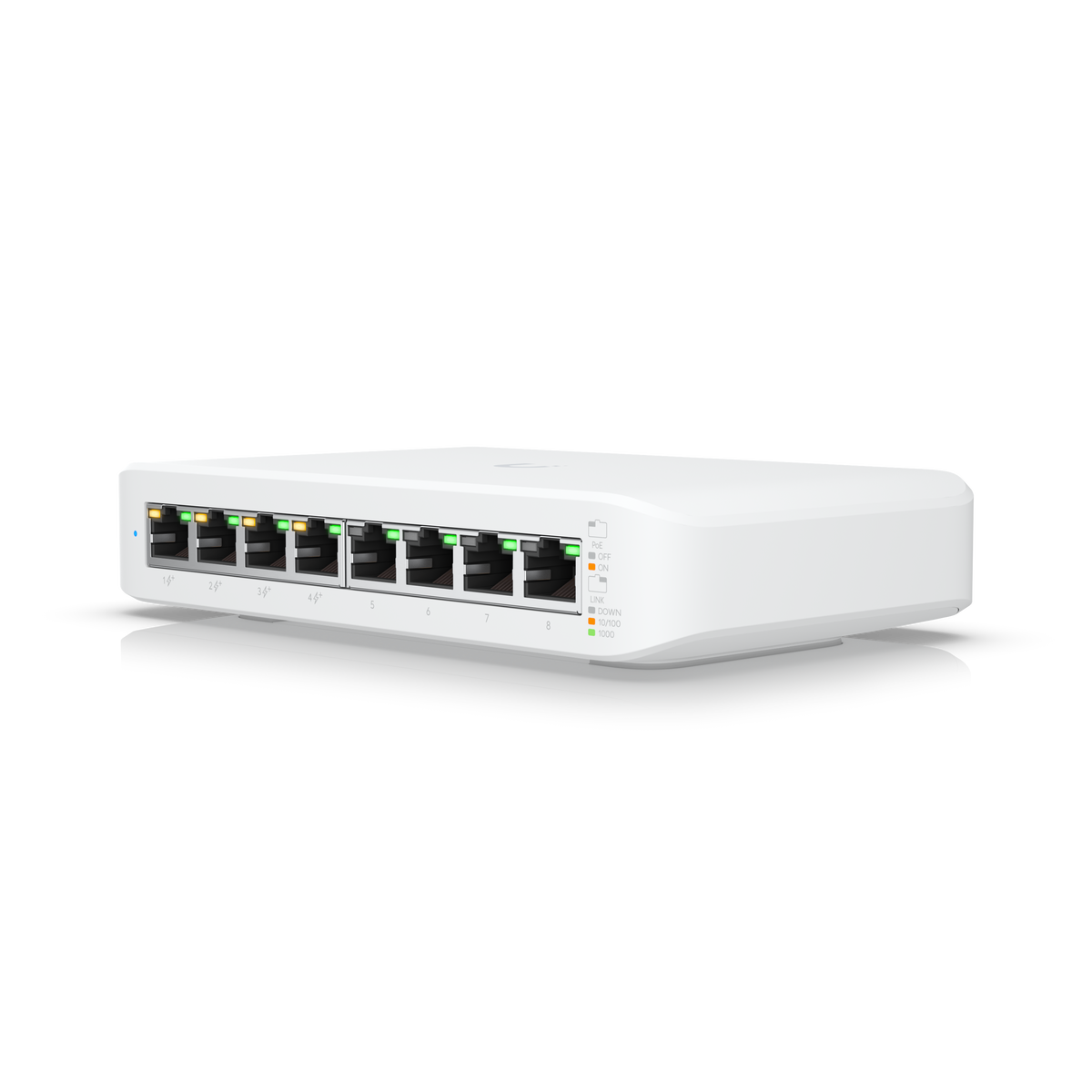

Ubiquiti UniFi Switch Lite 8 PoE USW-Lite-8-PoE

The Ubiquiti UniFi Switch Lite 8 PoE is a fully managed Layer 2 switch featuring eight Gigabit Ethernet ports, including four 802.3at PoE+ ports. Designed for compact deployment, it delivers up to 52W of total PoE power using an external 60W power adapter to effortlessly run connected access points and network devices.

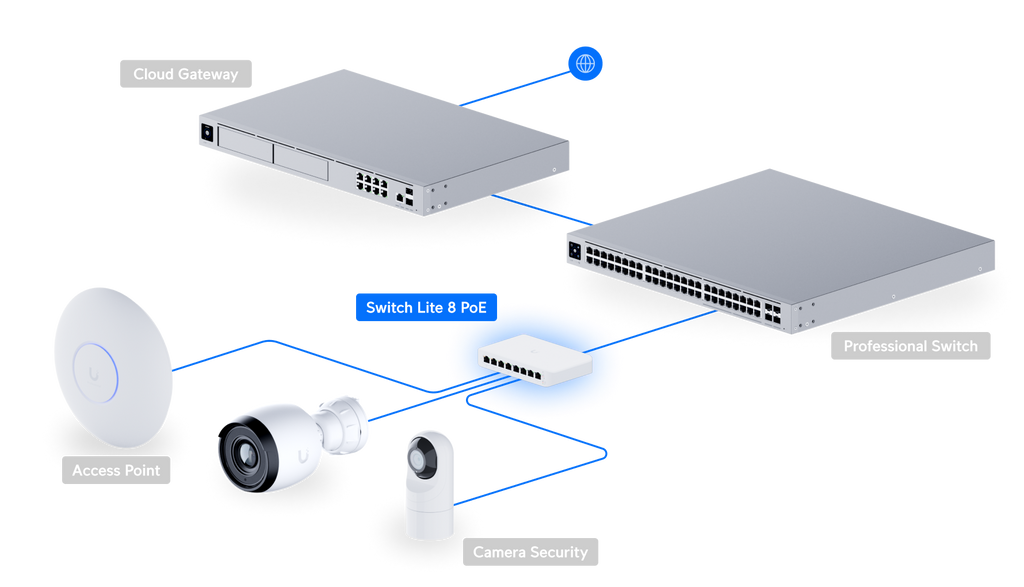

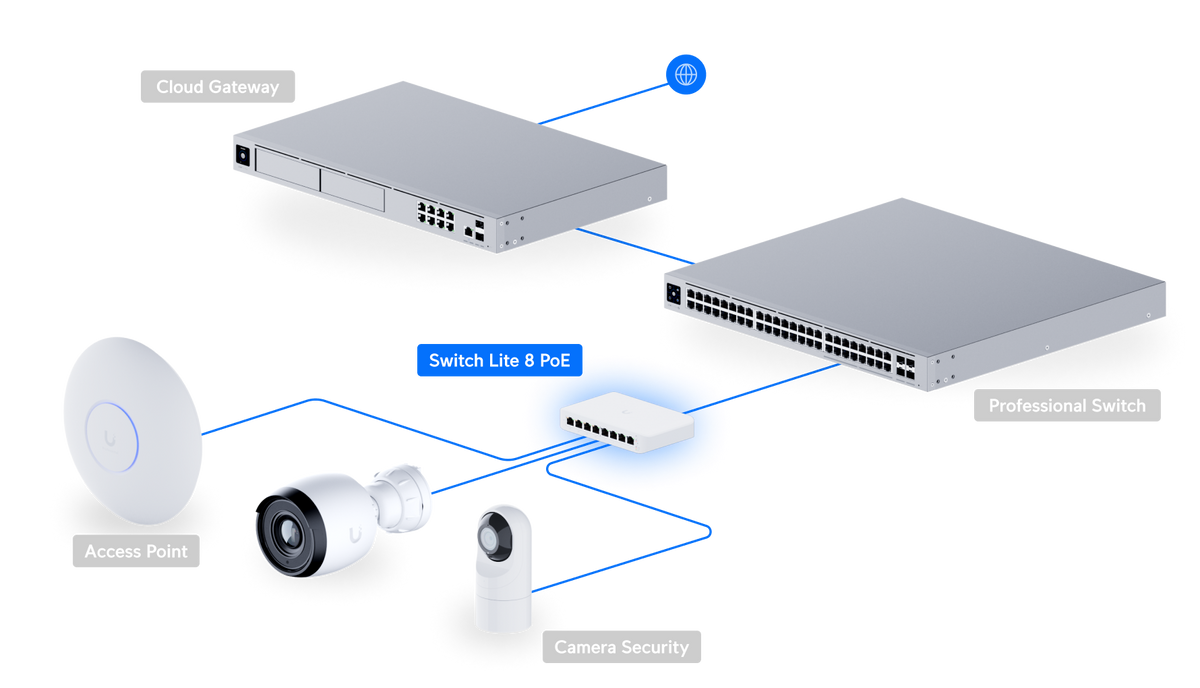

Built with silent, fanless cooling, this desktop and wall-mountable switch ensures quiet and reliable performance across demanding home and enterprise setups. It seamlessly integrates into the UniFi Network application for centralized management, comprehensive Layer 2 switching capabilities, and real-time network monitoring.

Key Features

Brand	Ubiquiti
Model	USW-Lite-8-PoE
Product Line	UniFi
Total Ethernet Ports	8
PoE+ Ports	4
Total PoE Availability	52W
Max. PoE Wattage per Port	30W
Switching Capacity	16 Gbps
Total Non-Blocking Throughput	8 Gbps
Forwarding Rate	12 Mpps

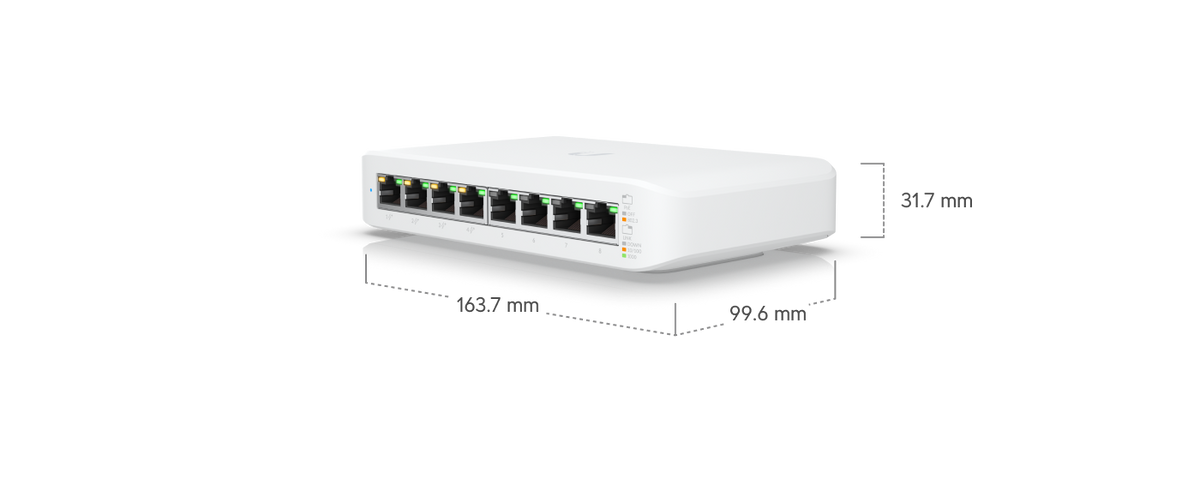

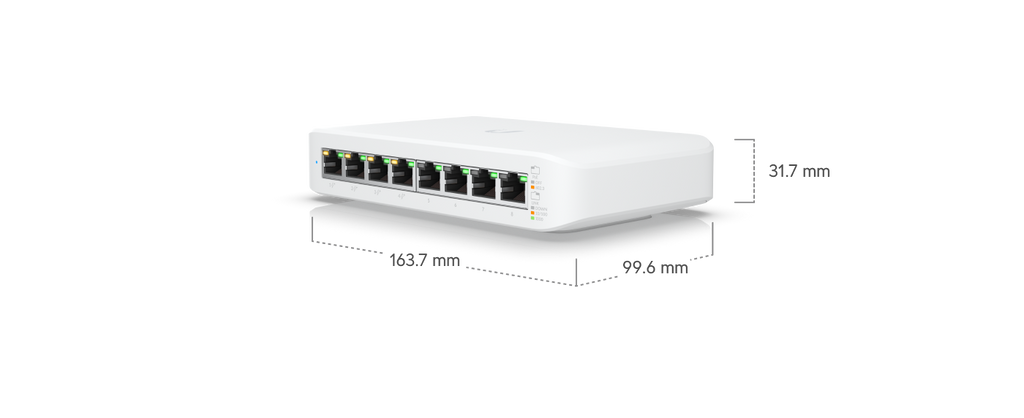

Dimensions	99.6 x 163.7 x 31.7 mm
Weight	295 g

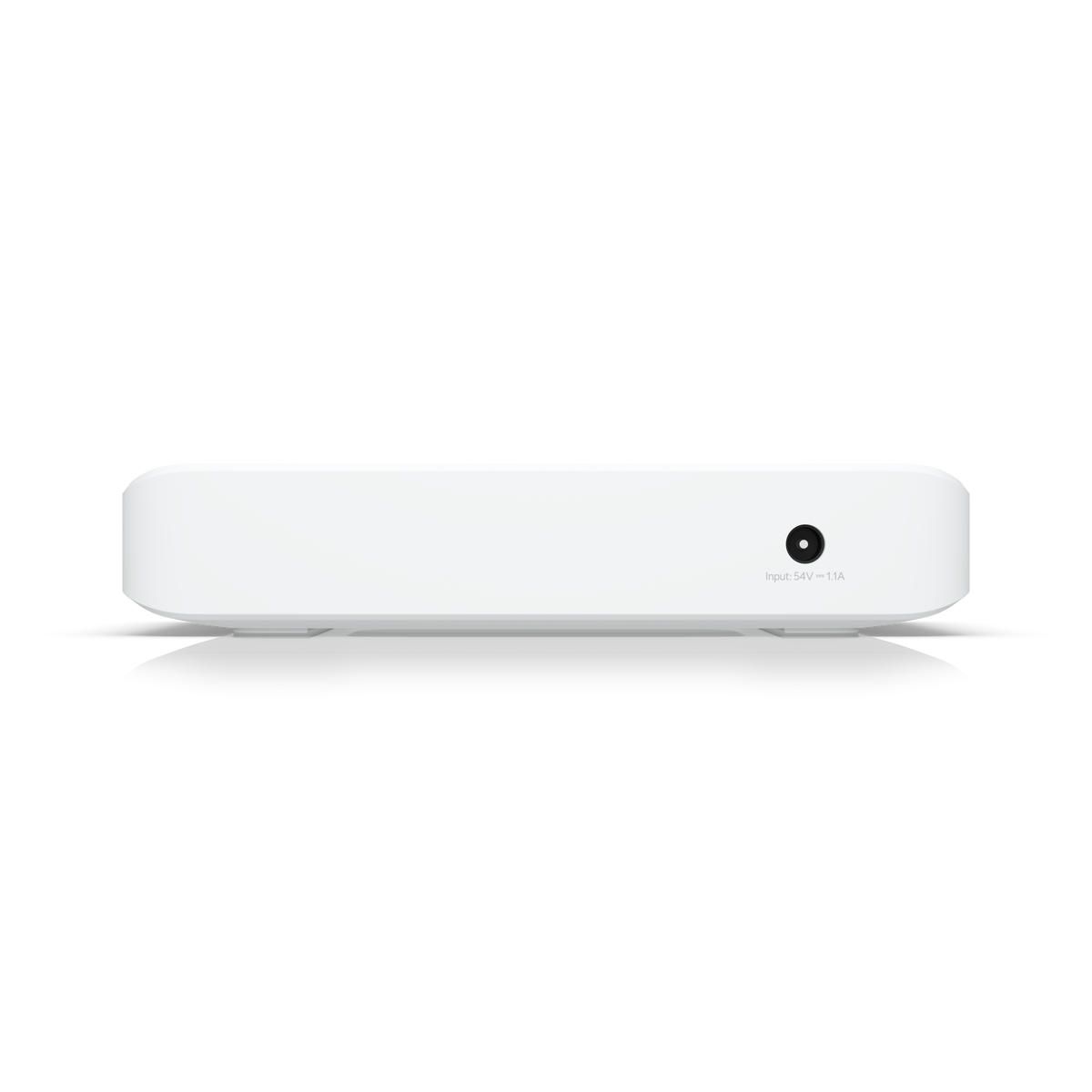

Power Method	External 60W AC/DC Adapter
Max. Power Consumption	8W (excluding PoE output), 60W (including PoE output)
Enclosure Material	Polycarbonate
Form Factor	Compact Desktop, Wall Mountable
Operating Temperature	-15 to 40° C
Operating Humidity	10 to 90% noncondensing
Management Interface	Ethernet (UniFi Network Application)

Highlights

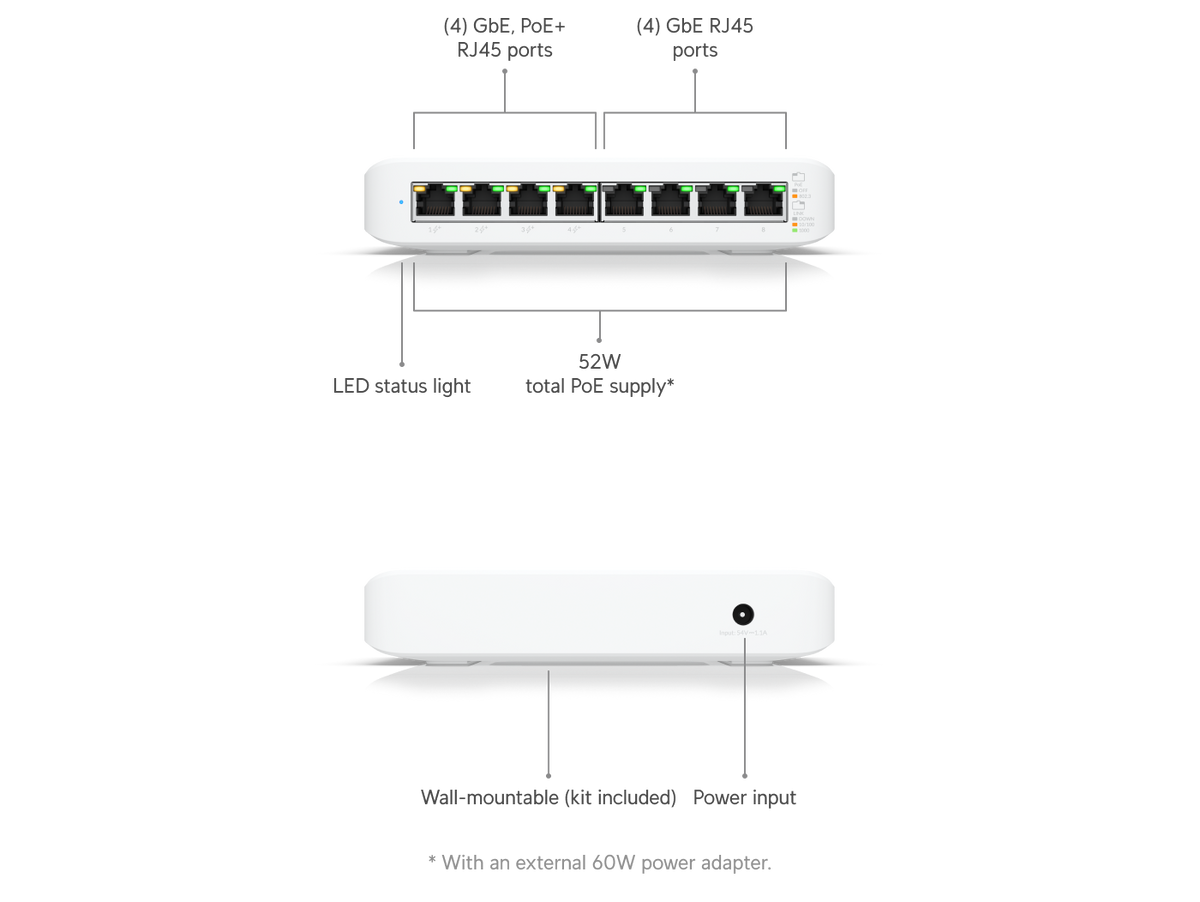

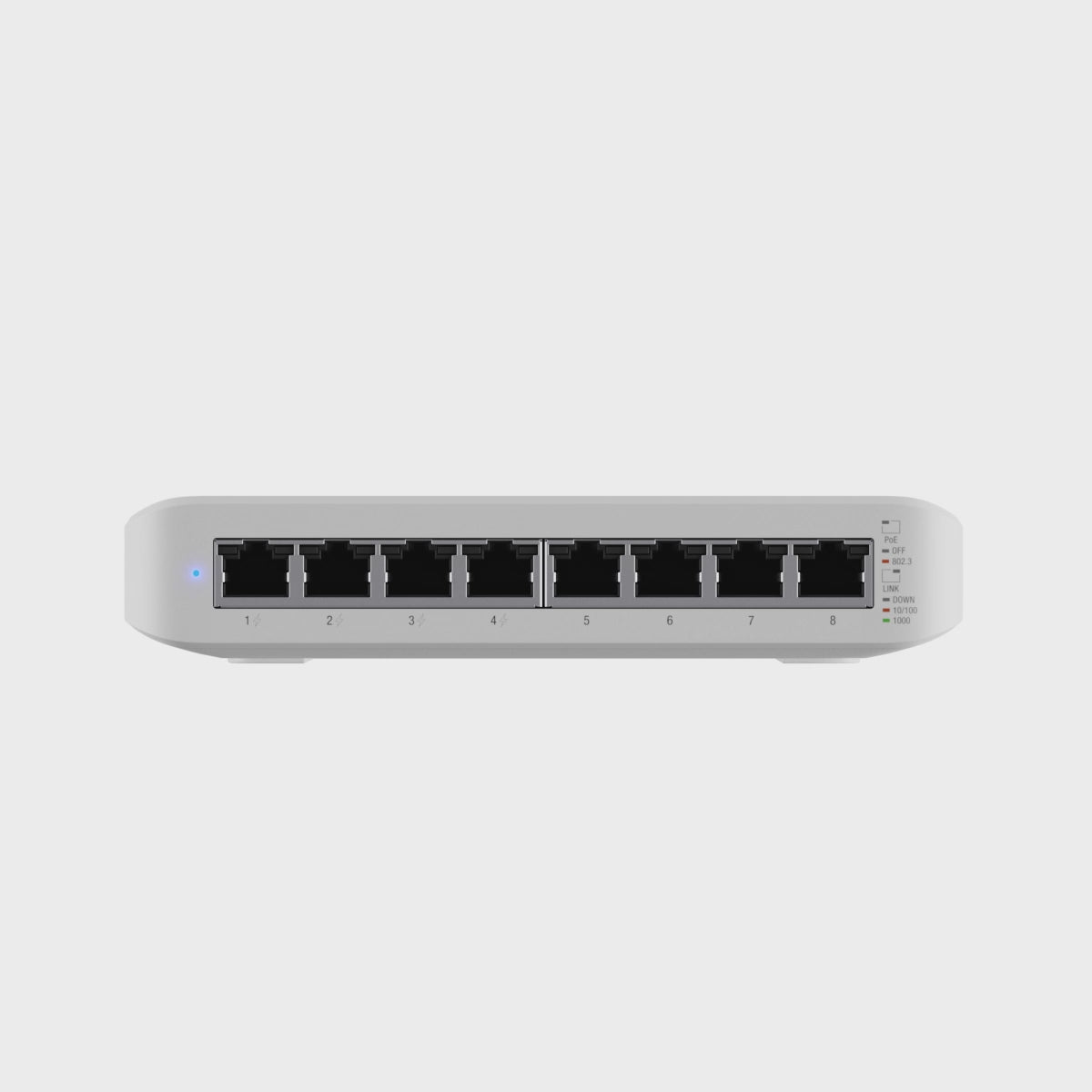

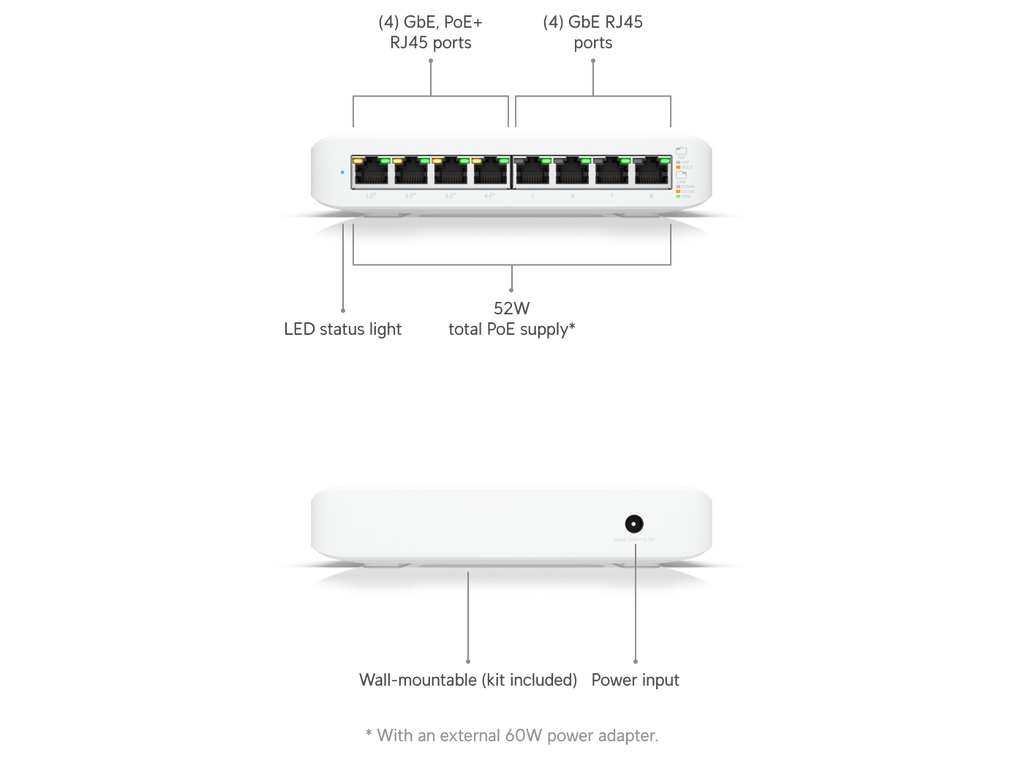

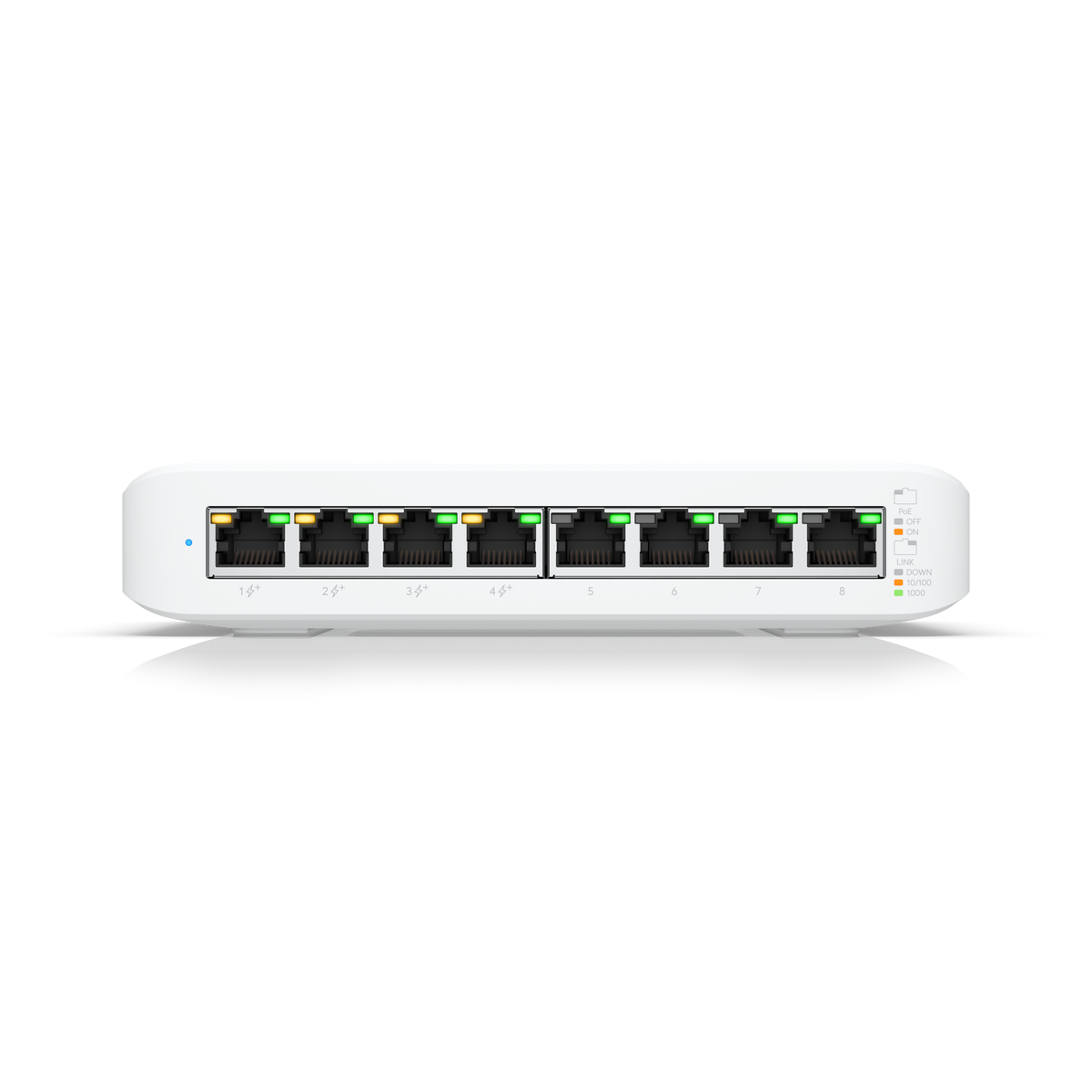

• (4) GbE PoE+, (4) GbE ports
• 52W total PoE availability

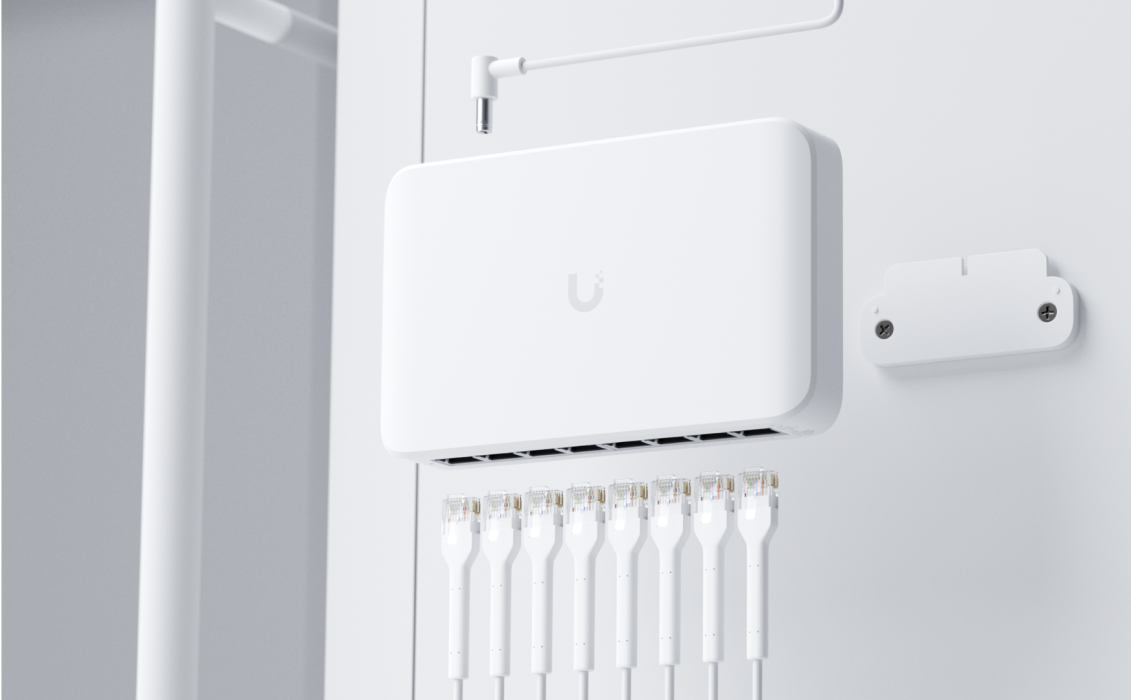

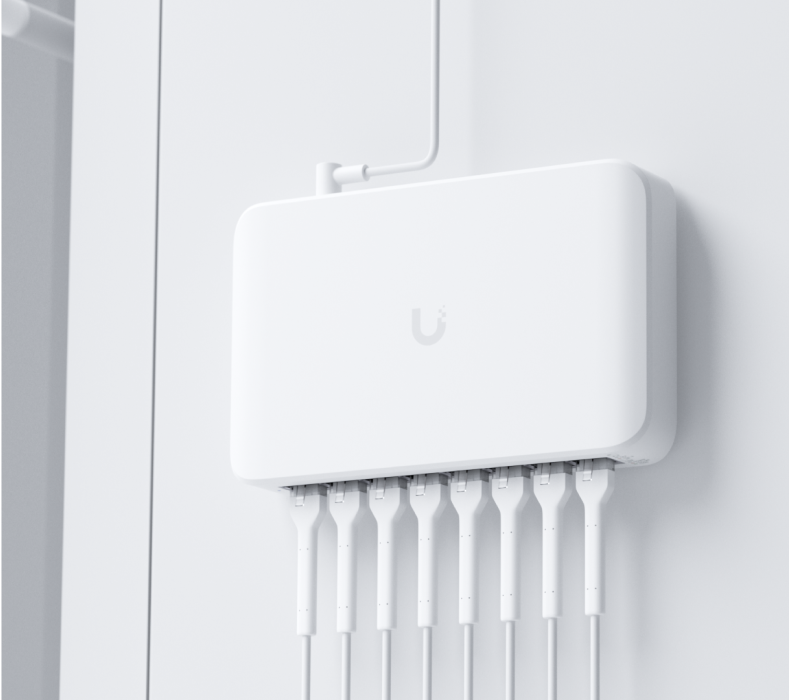

• Wall mountable

Videos

Compatibility

Managed with UniFi Network application version 7.2.94 and later. Compatible with standard 802.3af/at PoE devices and Gigabit Ethernet network equipment.

What's included

Downloads

• Installation Guide
• Datasheet

Frequently asked questions How many PoE ports does the Switch Lite 8 PoE have? The switch has 8 Gigabit RJ45 ports in total, including 4 auto-sensing 802.3at PoE+ ports. What is the total PoE power budget? It provides a total PoE availability of 52W when powered with the included external 60W power adapter. Is the Switch Lite 8 PoE silent during operation? Yes, it features a fanless cooling design that provides completely silent operation. What software is required to manage this switch? It requires the UniFi Network application version 7.2.94 or later for configuration and management.
