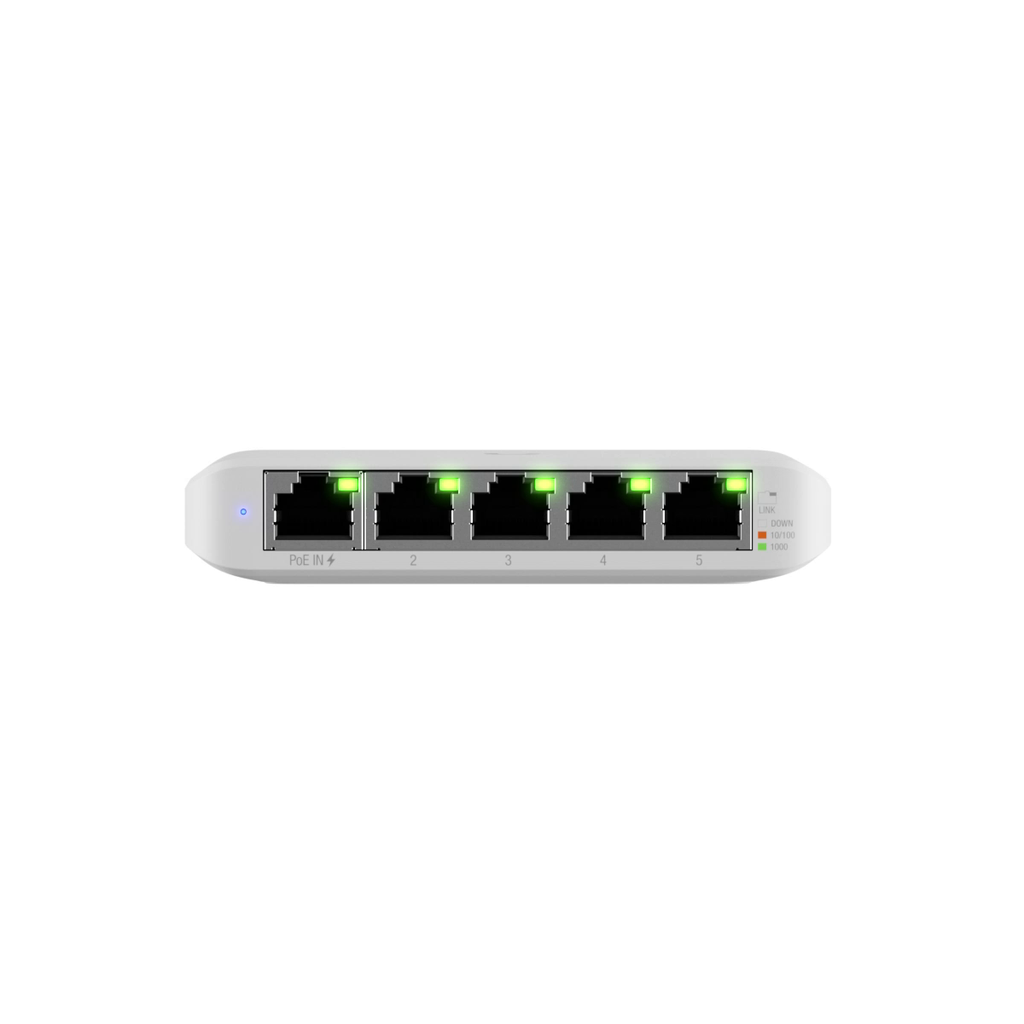

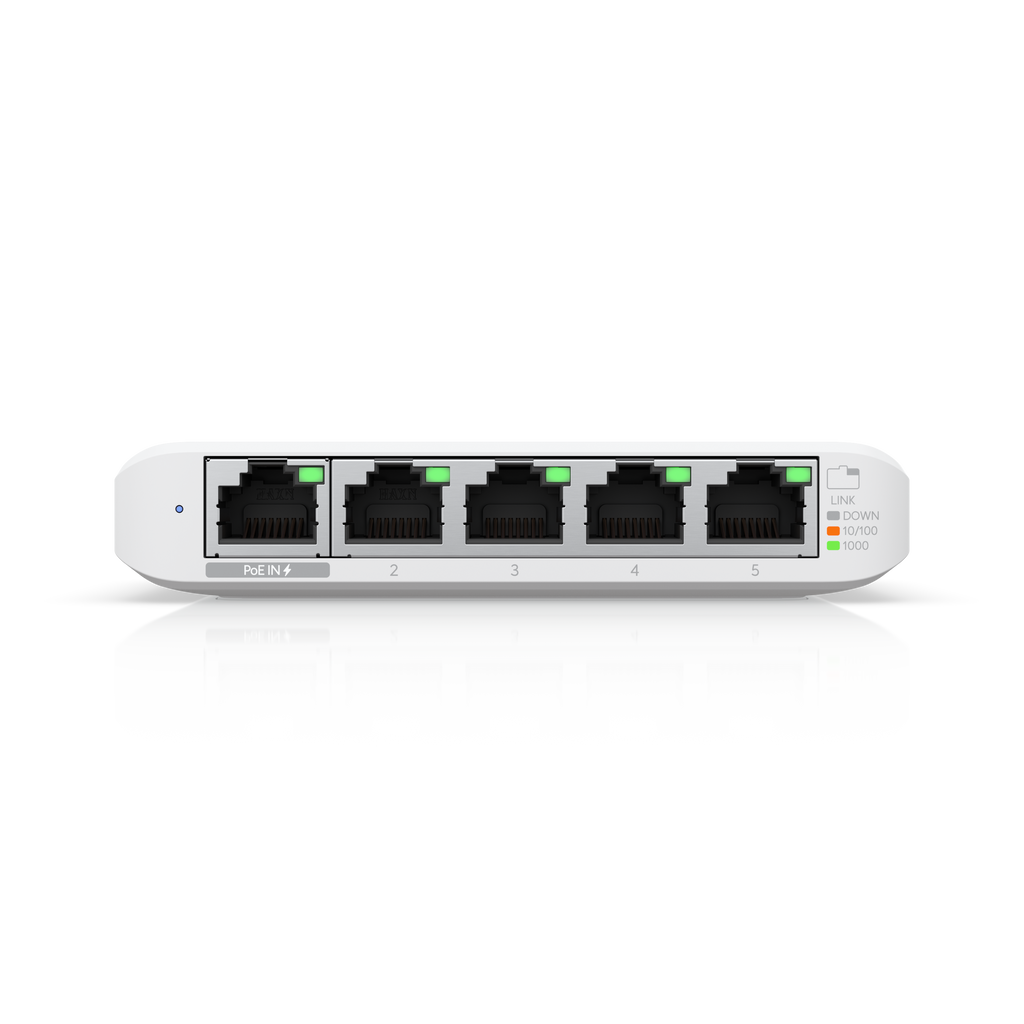

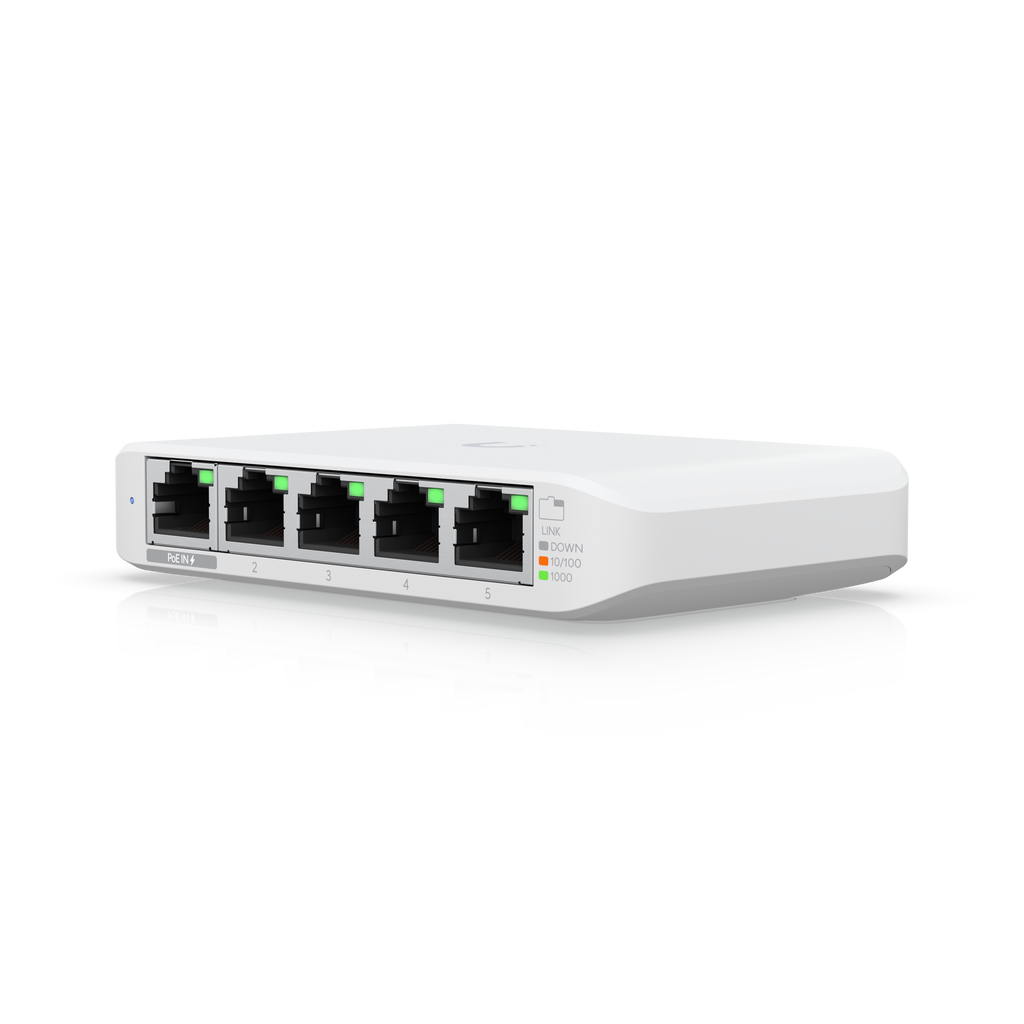

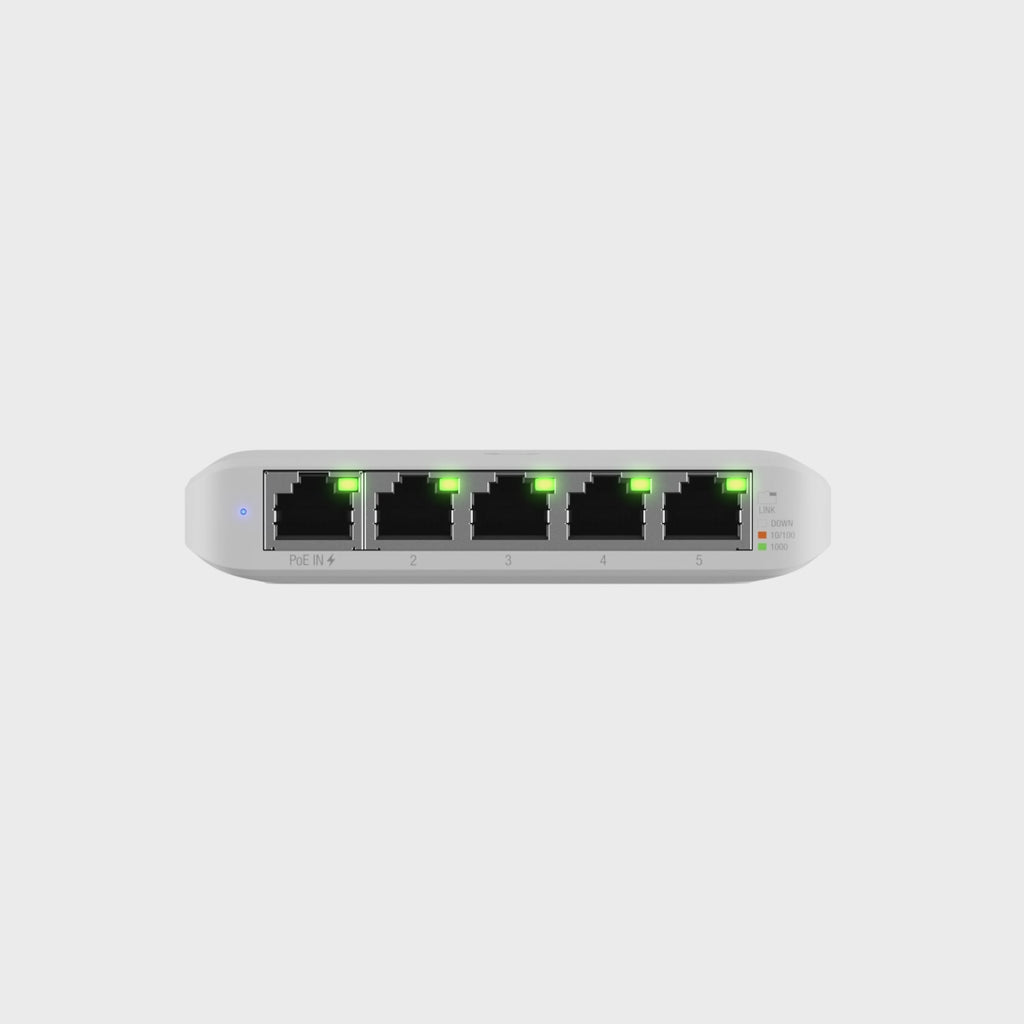

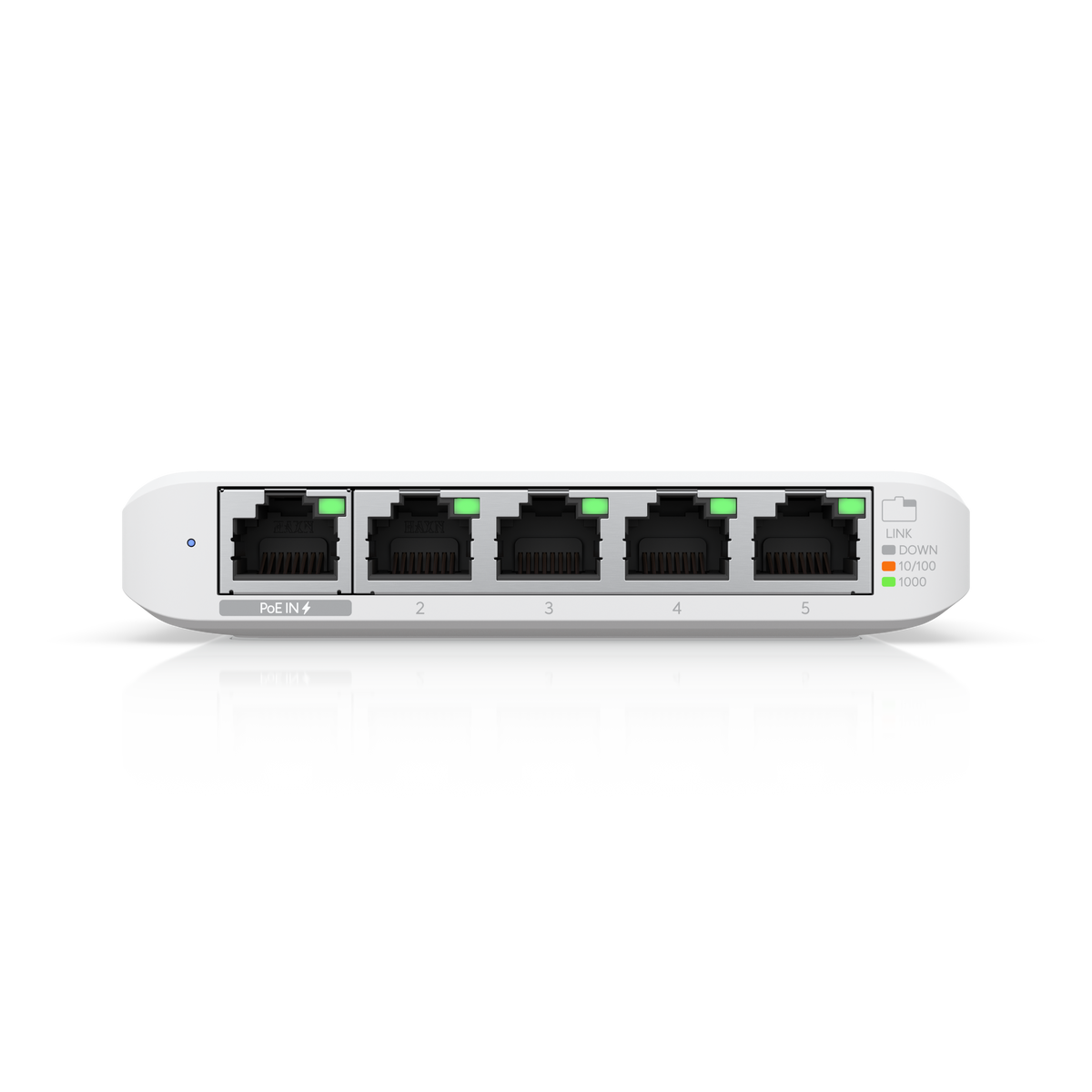

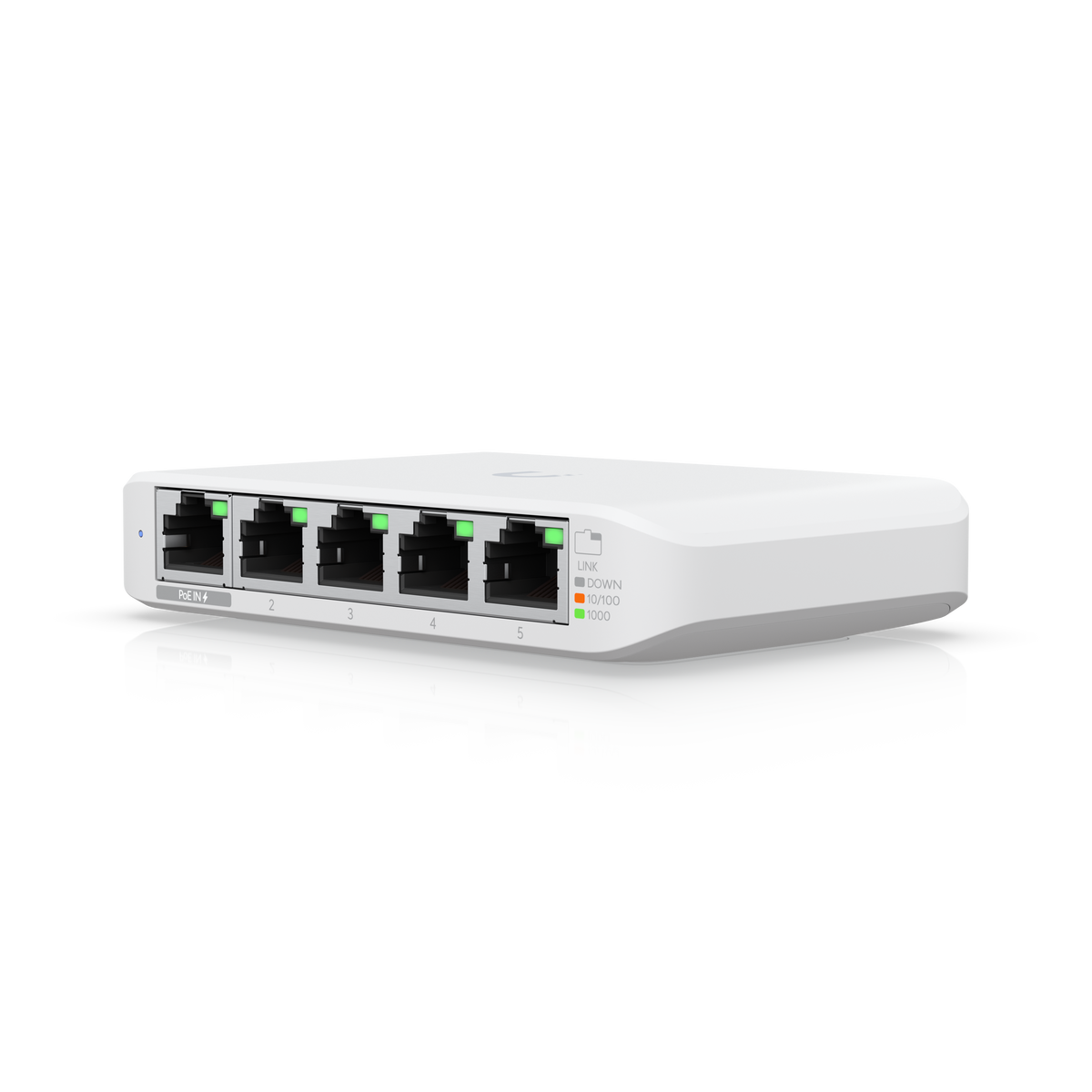

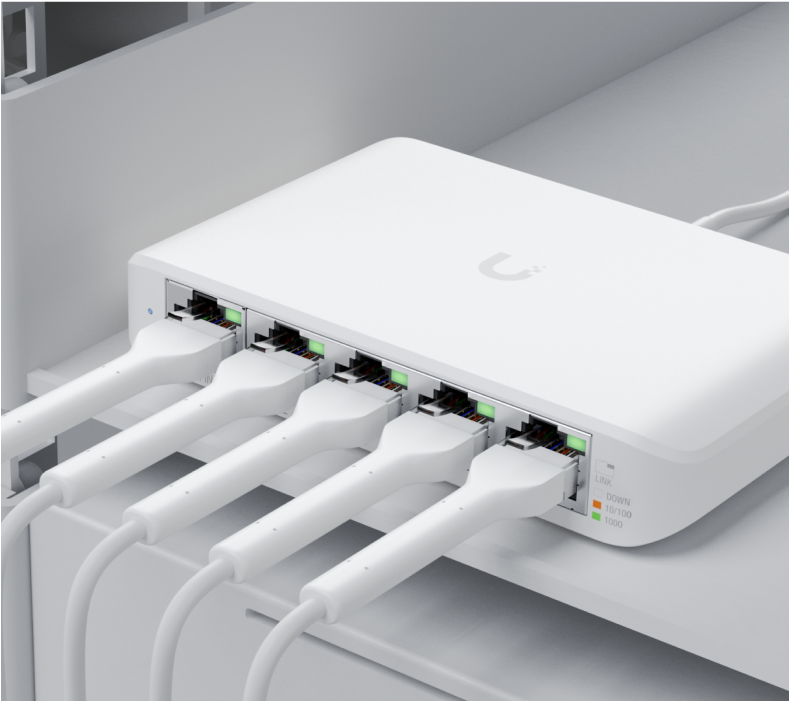

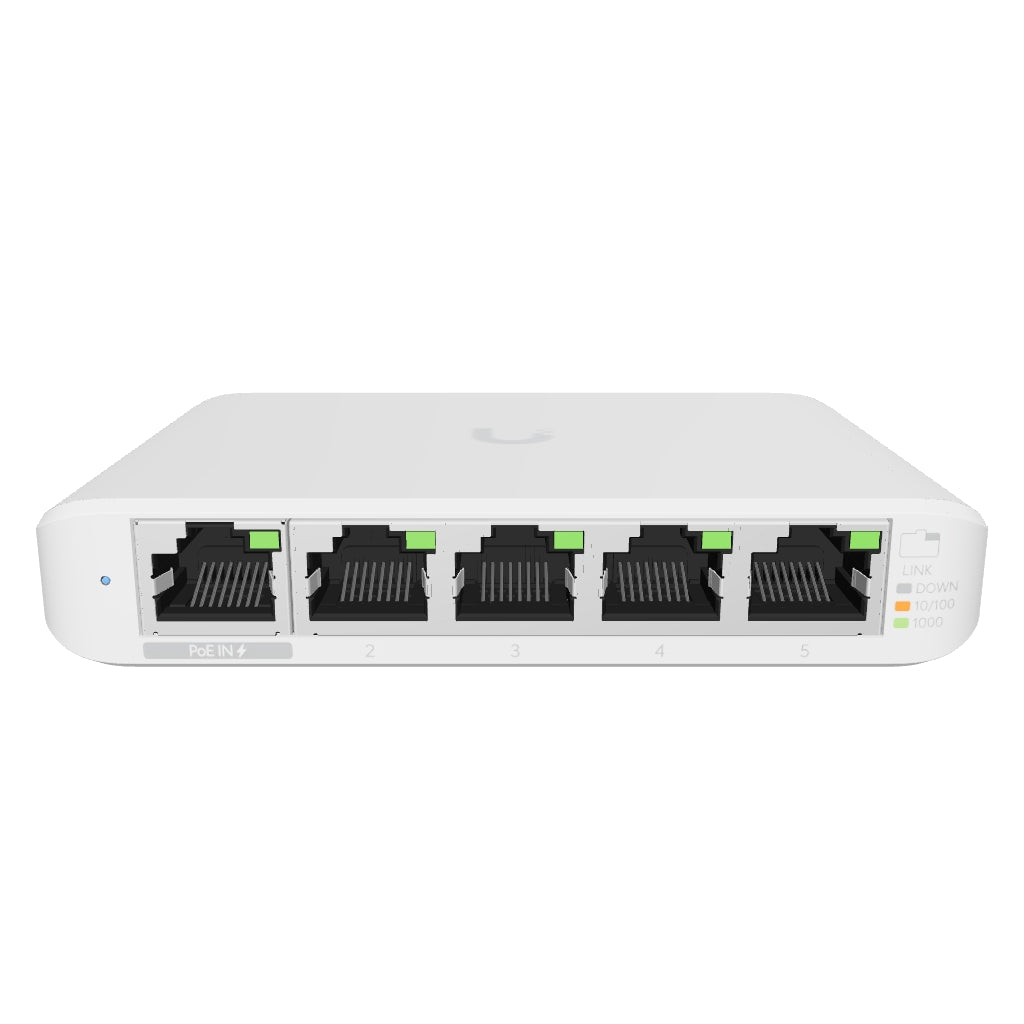

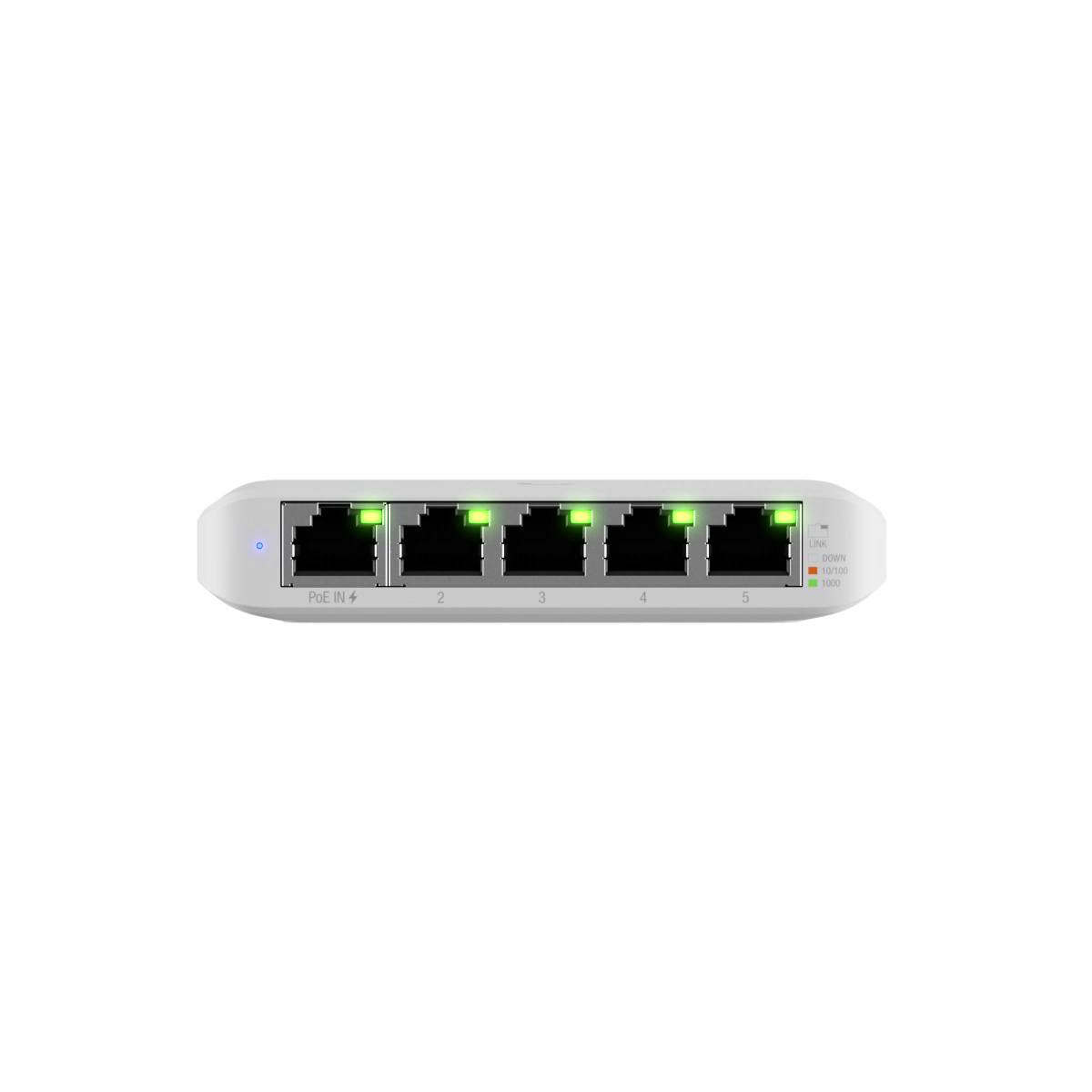

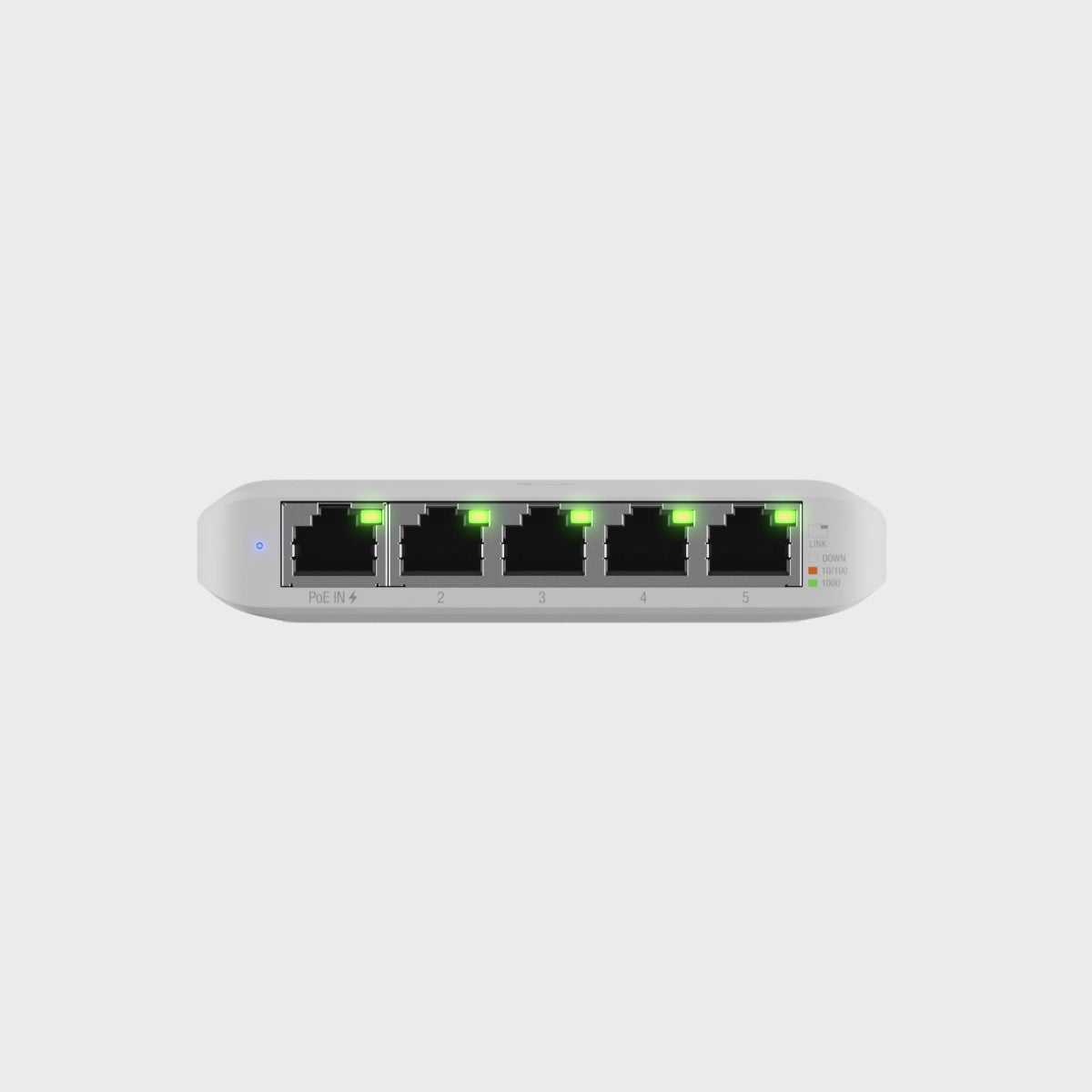

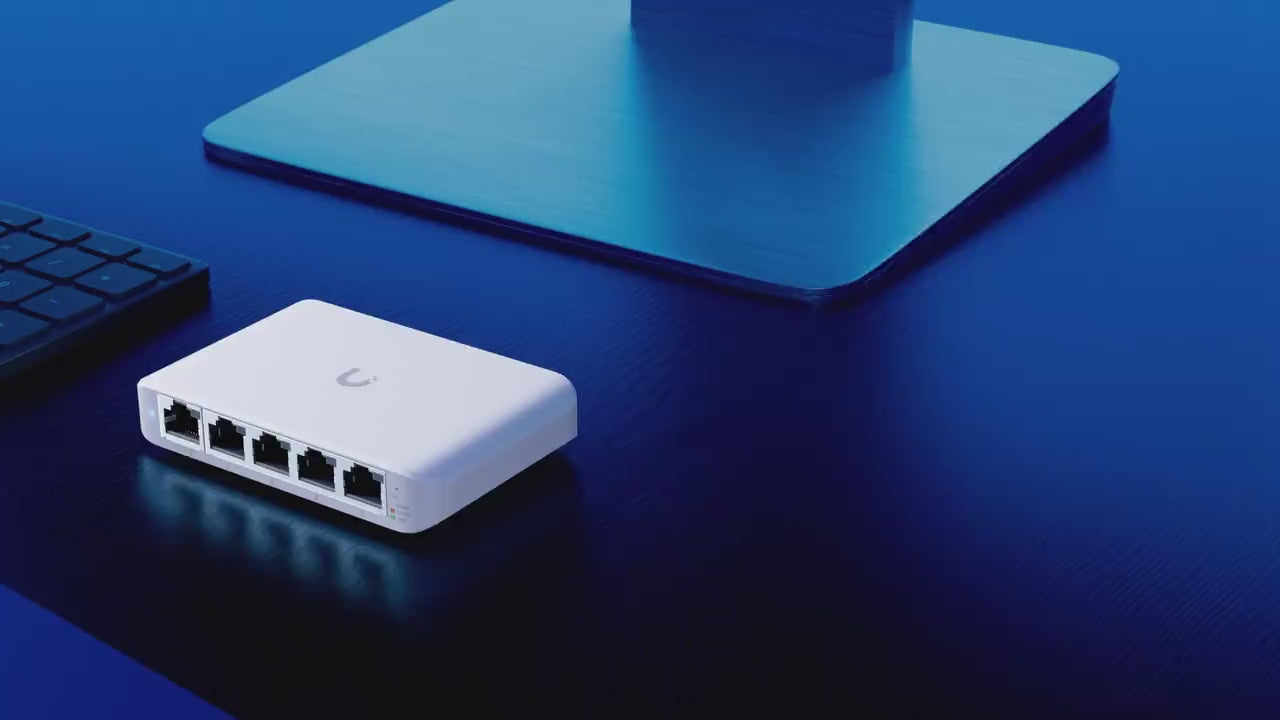

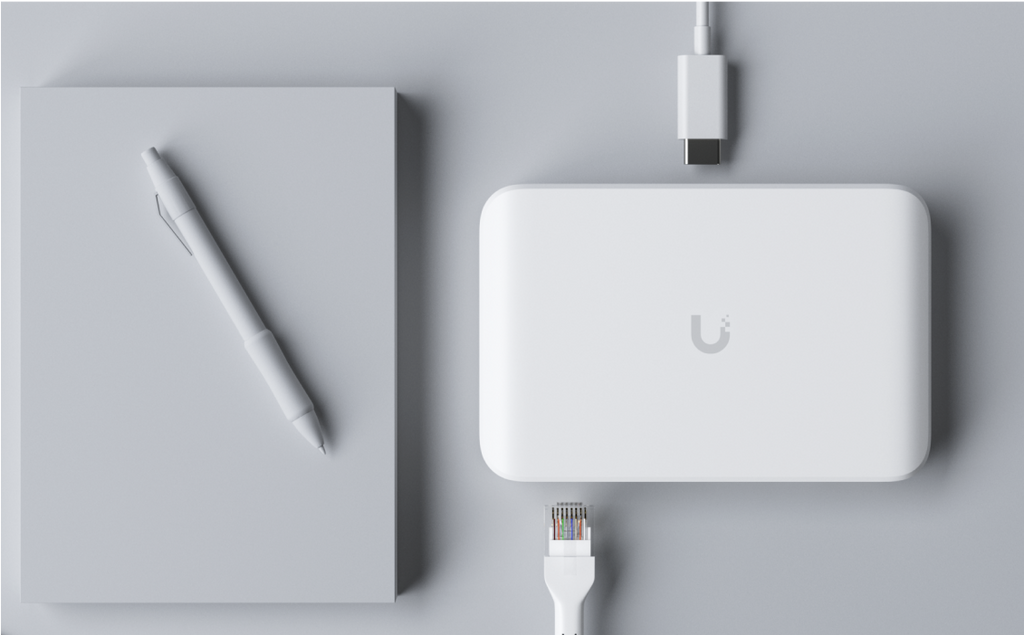

The Ubiquiti UniFi Switch Flex Mini is an ultra-compact Layer 2 desktop switch featuring five Gigabit Ethernet ports for high-performance network expansion. Designed for plug-and-play deployment, it delivers up to 10 Gbps switching capacity and 5 Gbps non-blocking throughput with low power consumption.

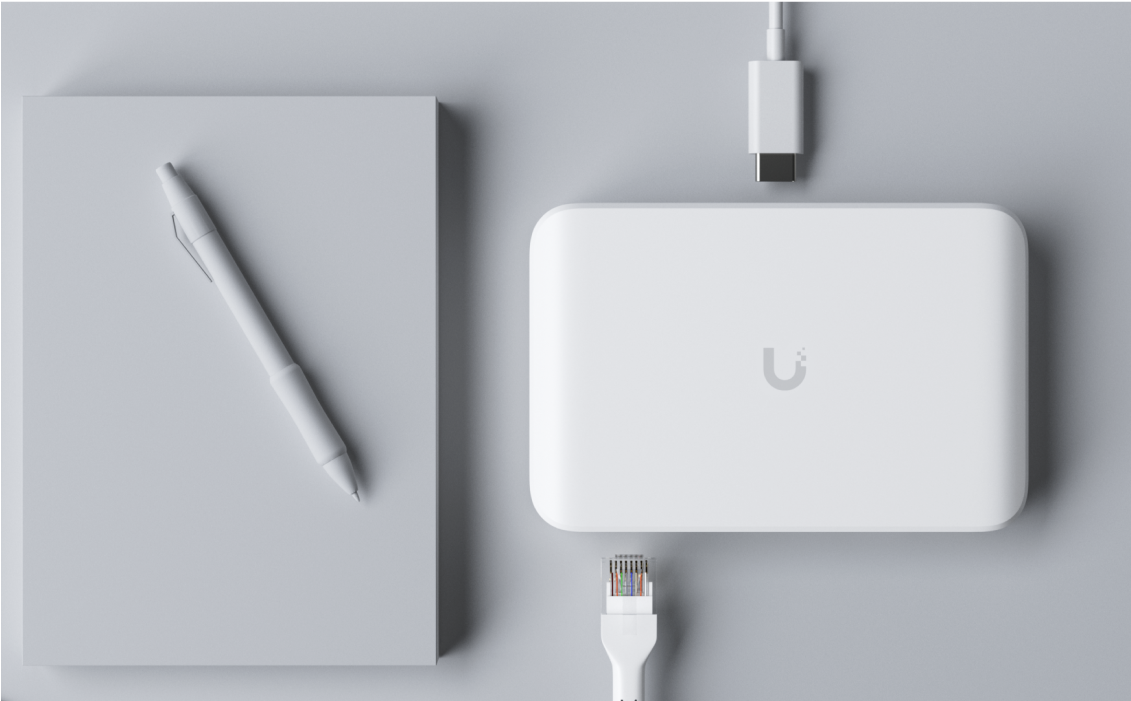

Built with versatile power options, this managed switch can be powered via standard 802.3af/at PoE on port 1 or using an external 5V, 1A USB-C power adapter. Its durable polycarbonate enclosure makes it a sleek and efficient networking solution for desktop and utility setups.
Key Features
| Brand | Ubiquiti |
| Model | USW-Flex-Mini |
| Form Factor | Compact desktop |
| Total Ethernet Ports | 5 x 1 GbE RJ45 |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Power Method | PoE, USB Type-C (5V DC, 1A) |
| Max Power Consumption | 2.5W |
| Supported Voltage Range | 4.8–5.2V DC / 44–57V PoE |
| Dimensions | 10.7 x 7.0 x 2.1 cm |
| Weight | 150 g |
| Enclosure Material | Polycarbonate |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
| Operating Temperature | -5 to 45° C |
| Certifications | CE, FCC, IC, Anatel |
Highlights
(4) GbE ports
(1) GbE PoE input port for power
Optional powering with included 5V, 1A USB-C adapter
Videos
Compatibility
Compatible with UniFi Network application version 5.12.5 and later, and standard 802.3af/at PoE power sources.
What's included
- Ubiquiti UniFi Switch Flex Mini
- 5V, 1A USB-C Power Adapter (included with single unit purchases)
