描述

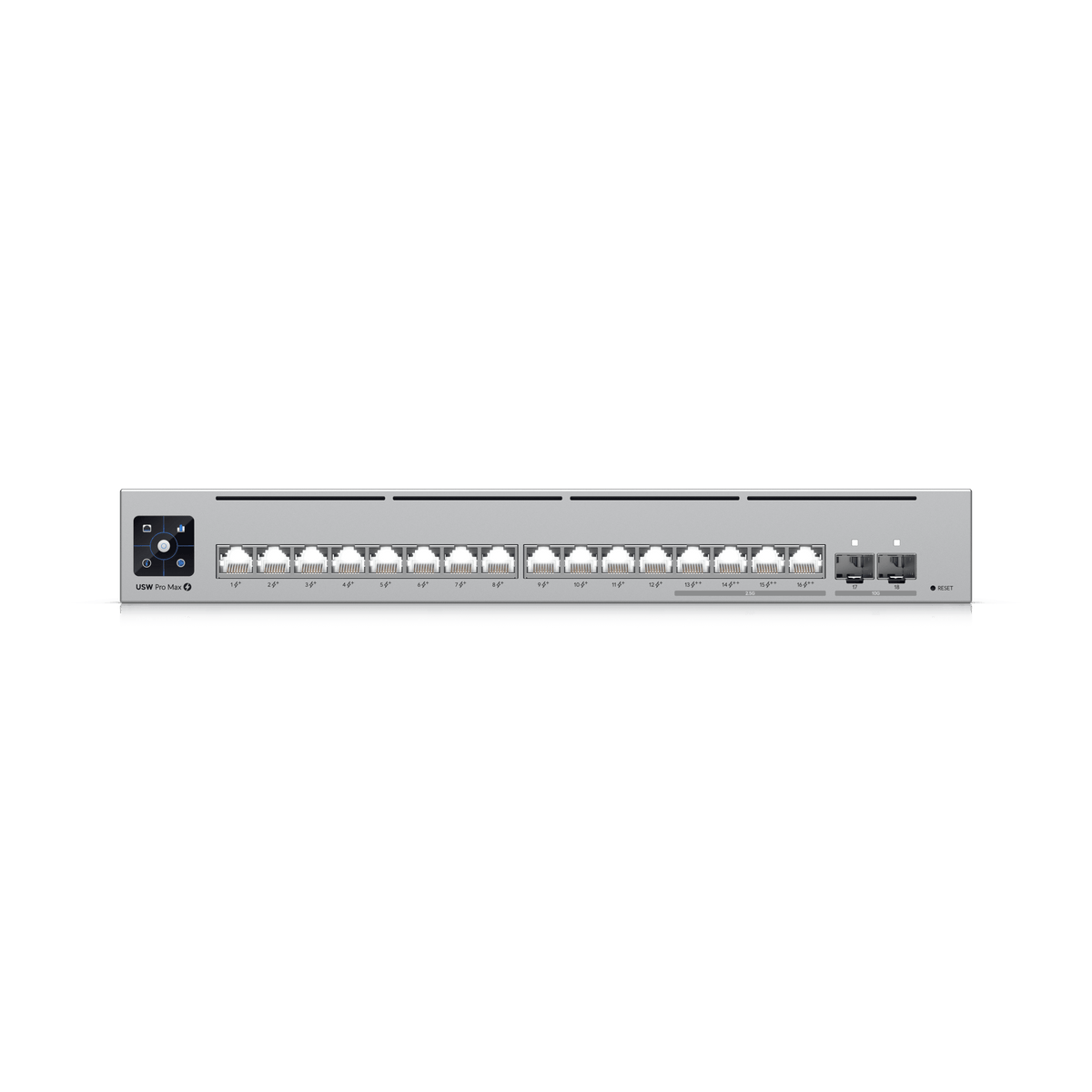

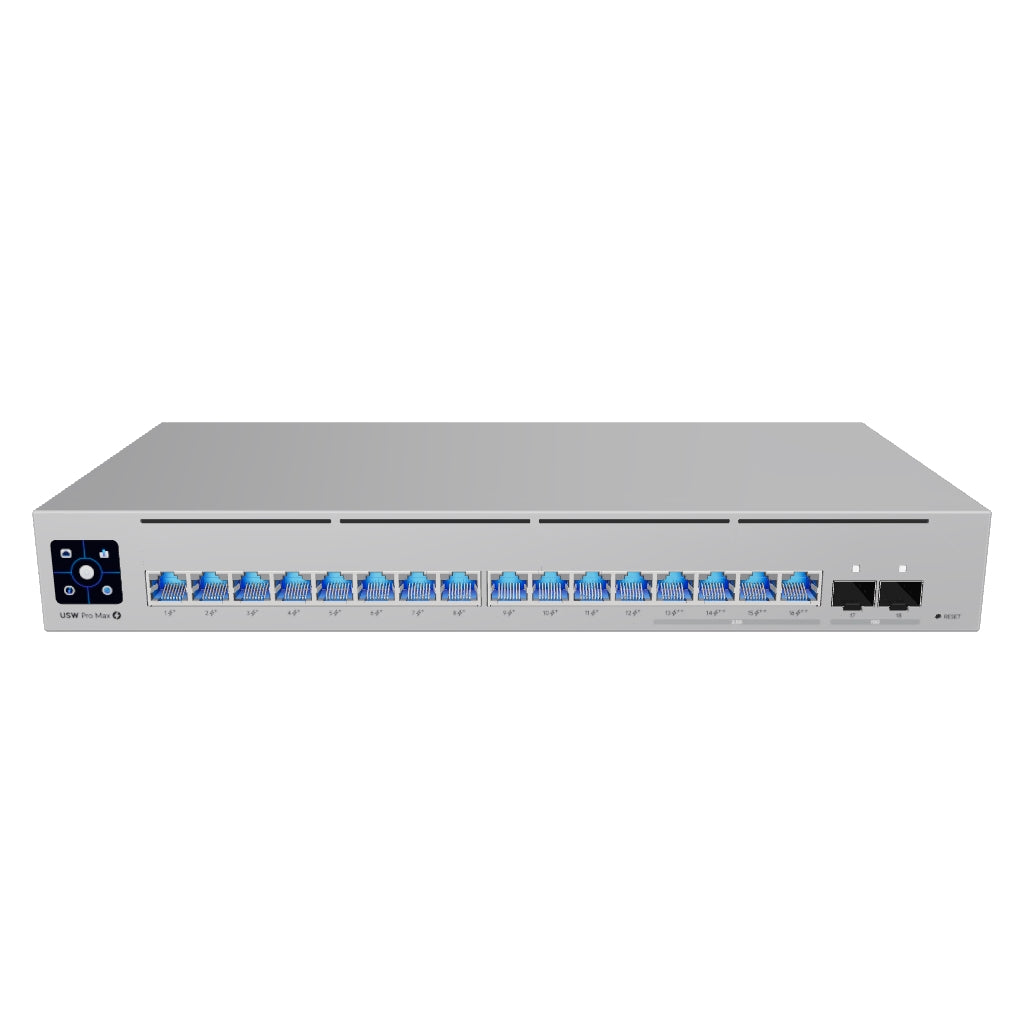

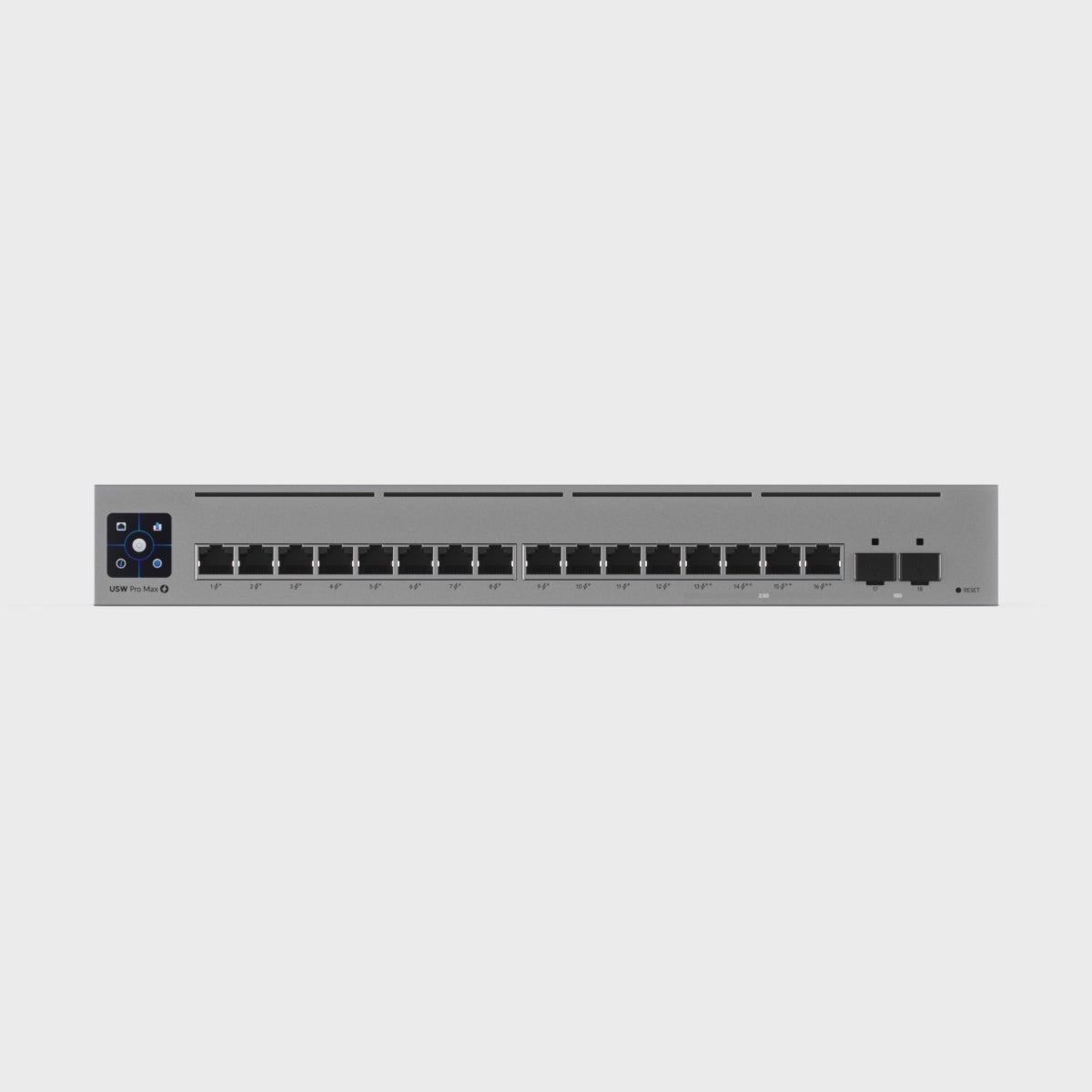

The Ubiquiti Switch Pro Max 16 PoE is a high-performance Layer 3 switch featuring Etherlighting technology that illuminates ports to indicate location, link speed, and native VLAN configuration. Equipped with four 2.5 GbE PoE++ ports, twelve 1 GbE PoE+ ports, and two 10G SFP+ uplink ports, it delivers a robust 180W total PoE budget to power high-density access points and network hardware.
Engineered for versatile deployment, this compact switch supports desktop, wall, and 1U rack mounting while maintaining completely silent, fanless operation. Integrated Pro AV profiles, advanced Layer 3 routing features, and an intuitive 1.3-inch touchscreen display ensure seamless setup and reliable network management.
Key Features
| Brand | Ubiquiti |
| Model | USW-Pro-Max-16-PoE |
| Product Type | PoE Network Switch |
| Dimensions | 32.5 x 16.0 x 4.4 cm |
| Weight | 2.1 kg |
| Enclosure Material | SGCC steel |
| Total PoE Availability | 180W |
| Ethernet Ports | 4 x 2.5 GbE RJ45 (PoE++), 12 x 1 GbE RJ45 (PoE+) |
| SFP Ports | 2 x 10G SFP+ |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Management Interface | Ethernet, AR |
| Display | 1.3" touchscreen |
| Cooling | Fanless |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |

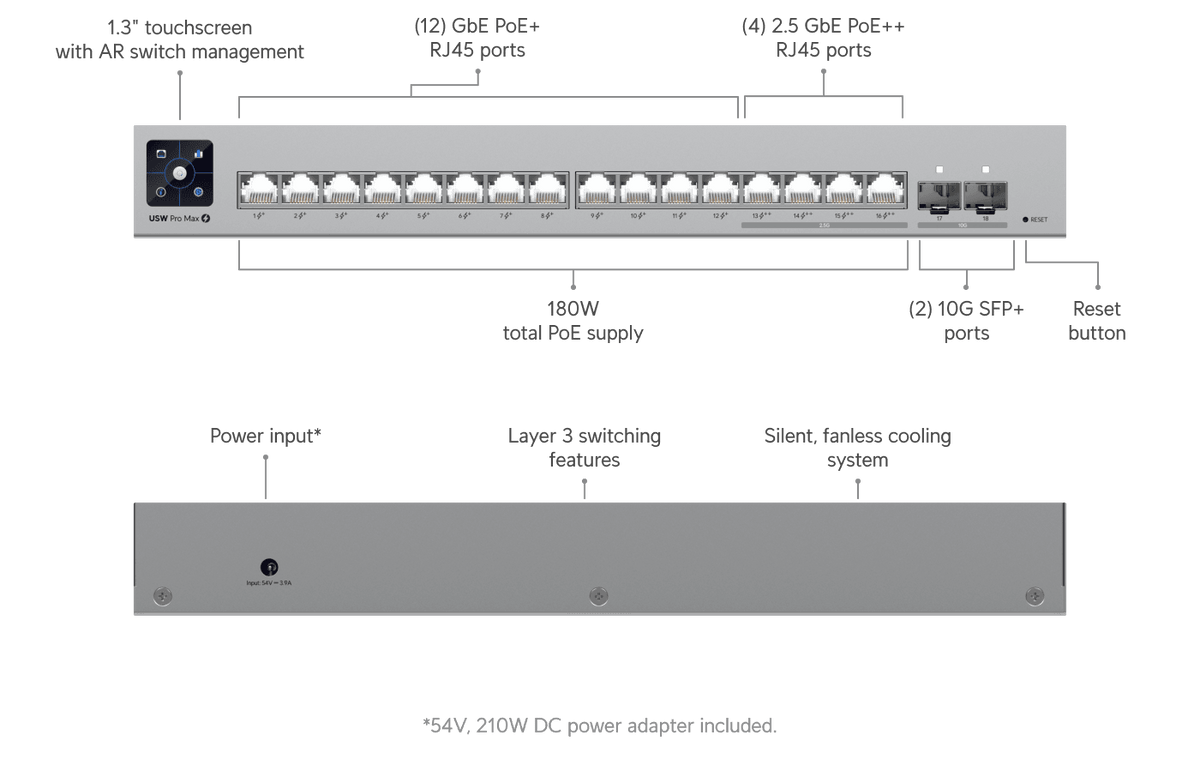

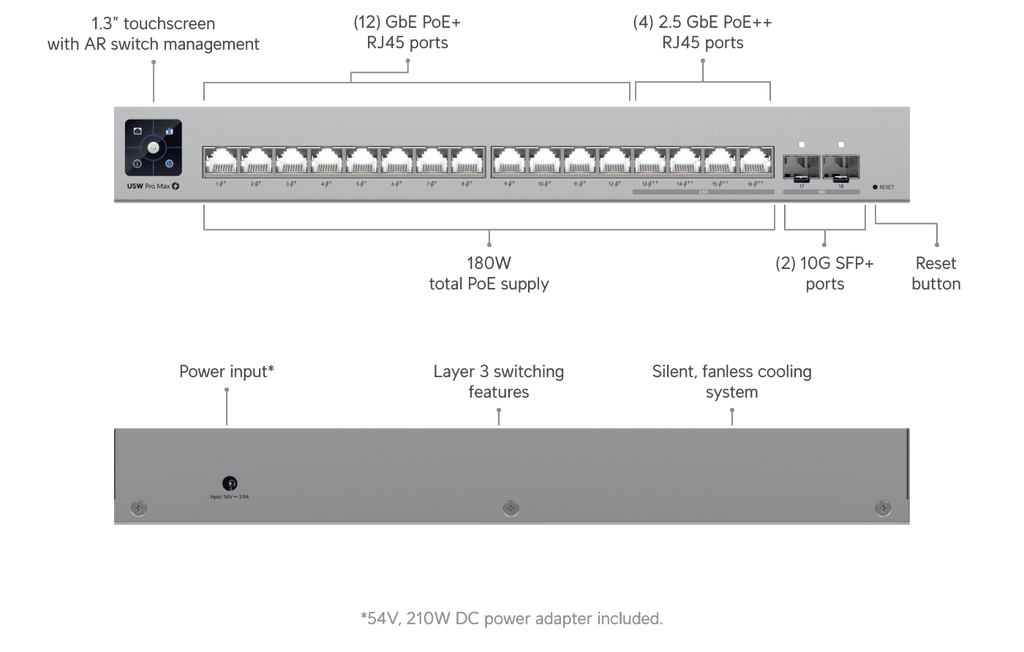

Highlights

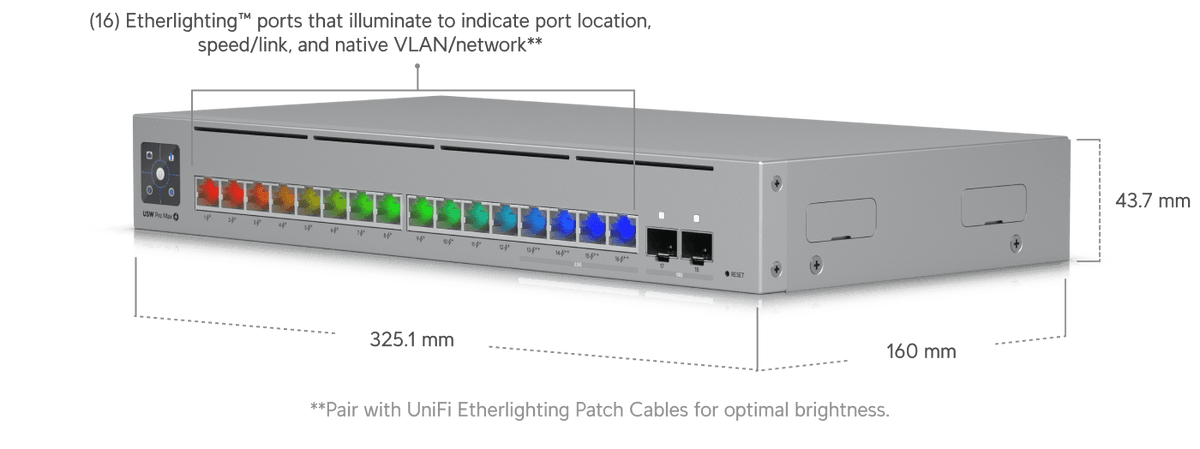

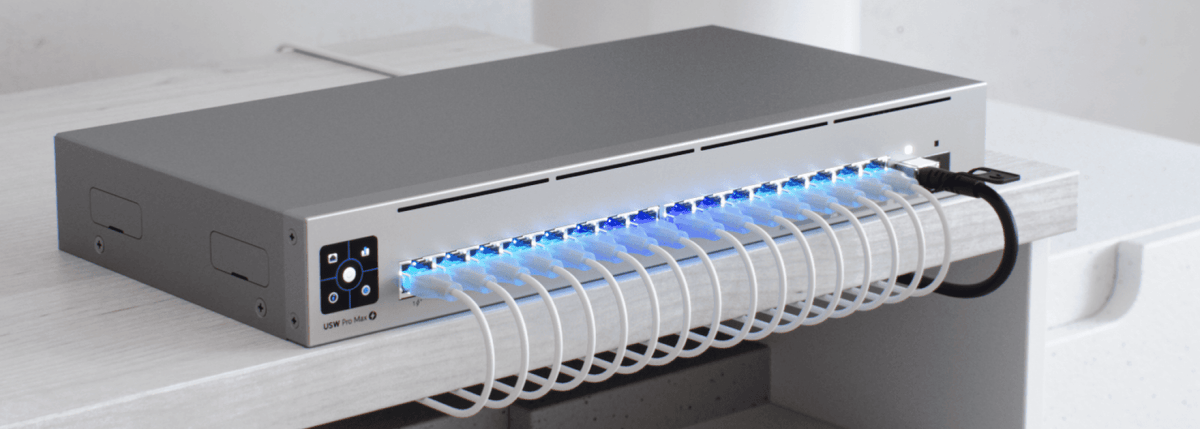

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability

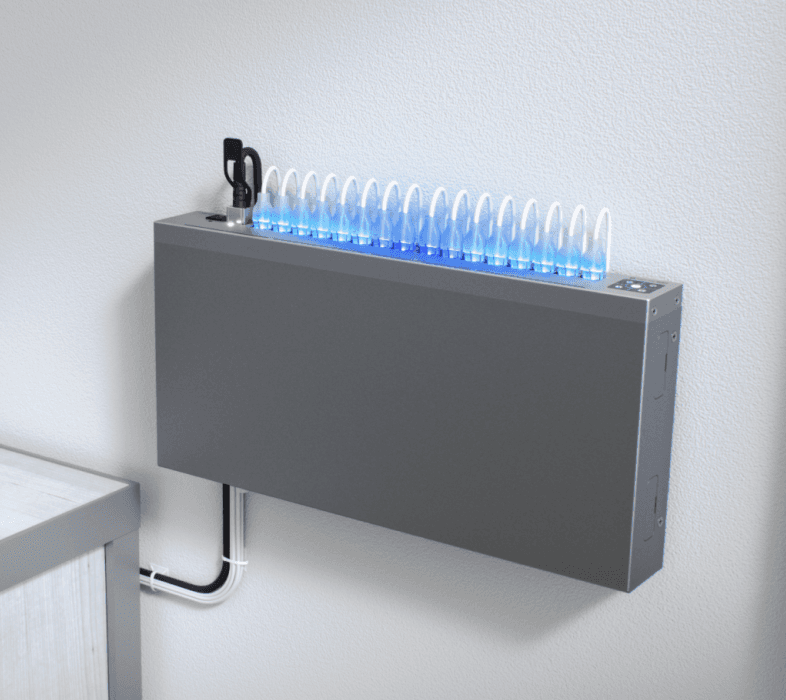

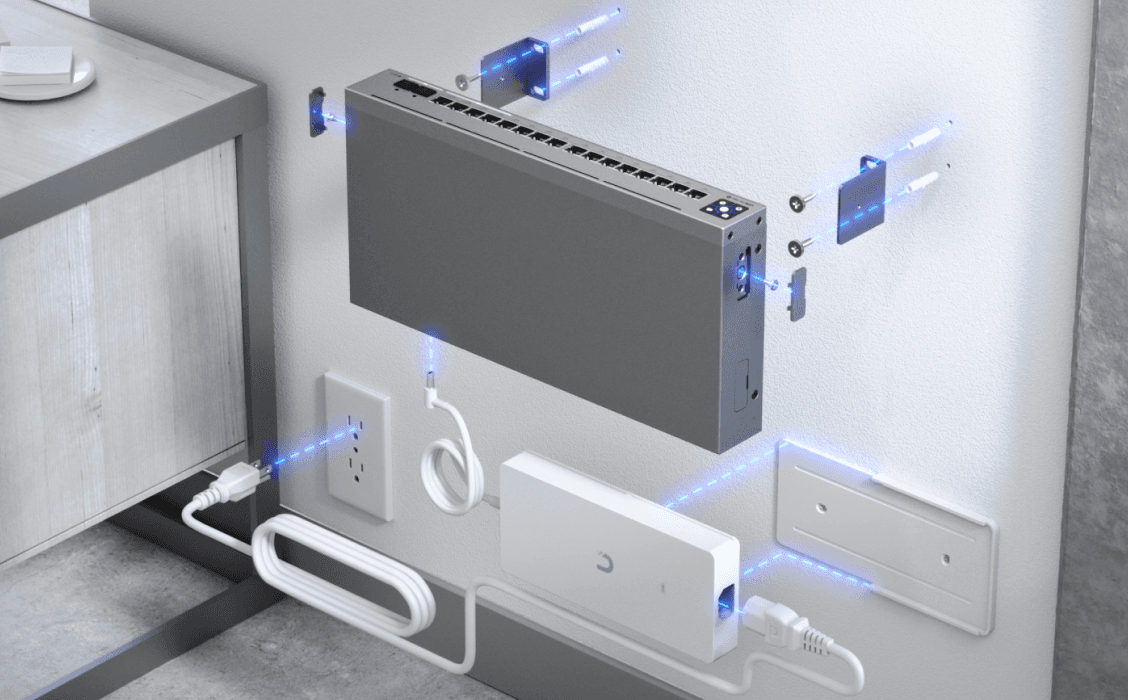

Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Videos
Compatibility

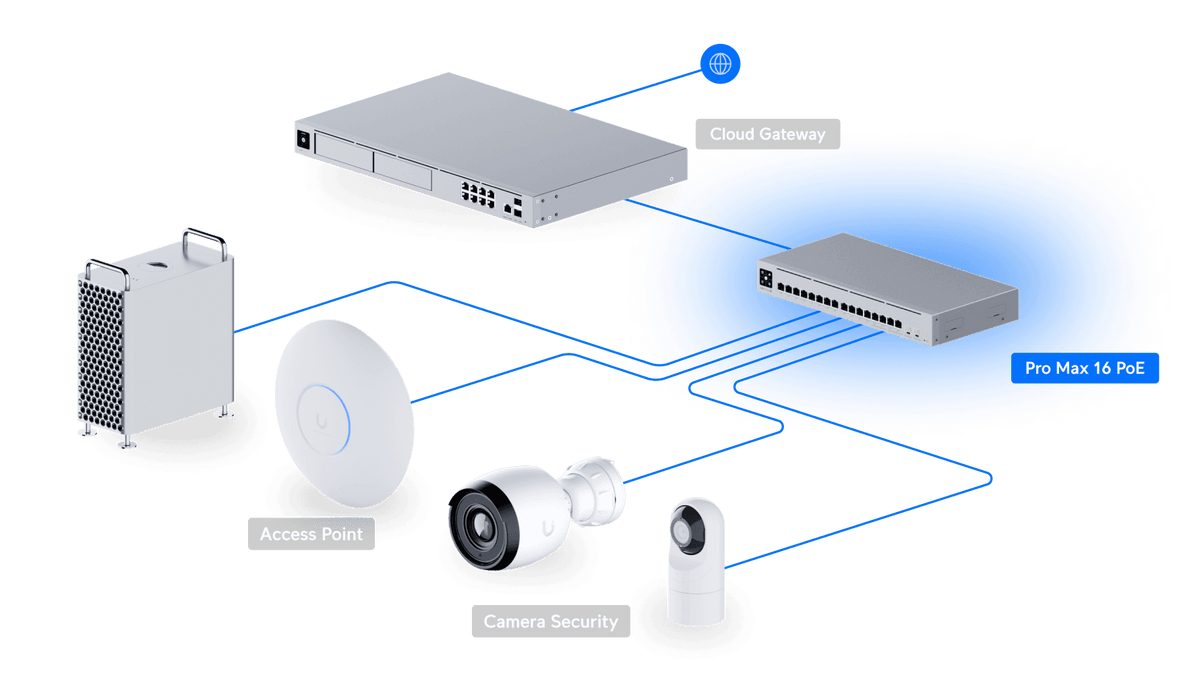

Compatible with UniFi Network application version 8.1.127 and later. Optimized for use with UniFi Etherlighting Patch Cables, WiFi 7 access points, and standard PoE/PoE+/PoE++ connected devices.
