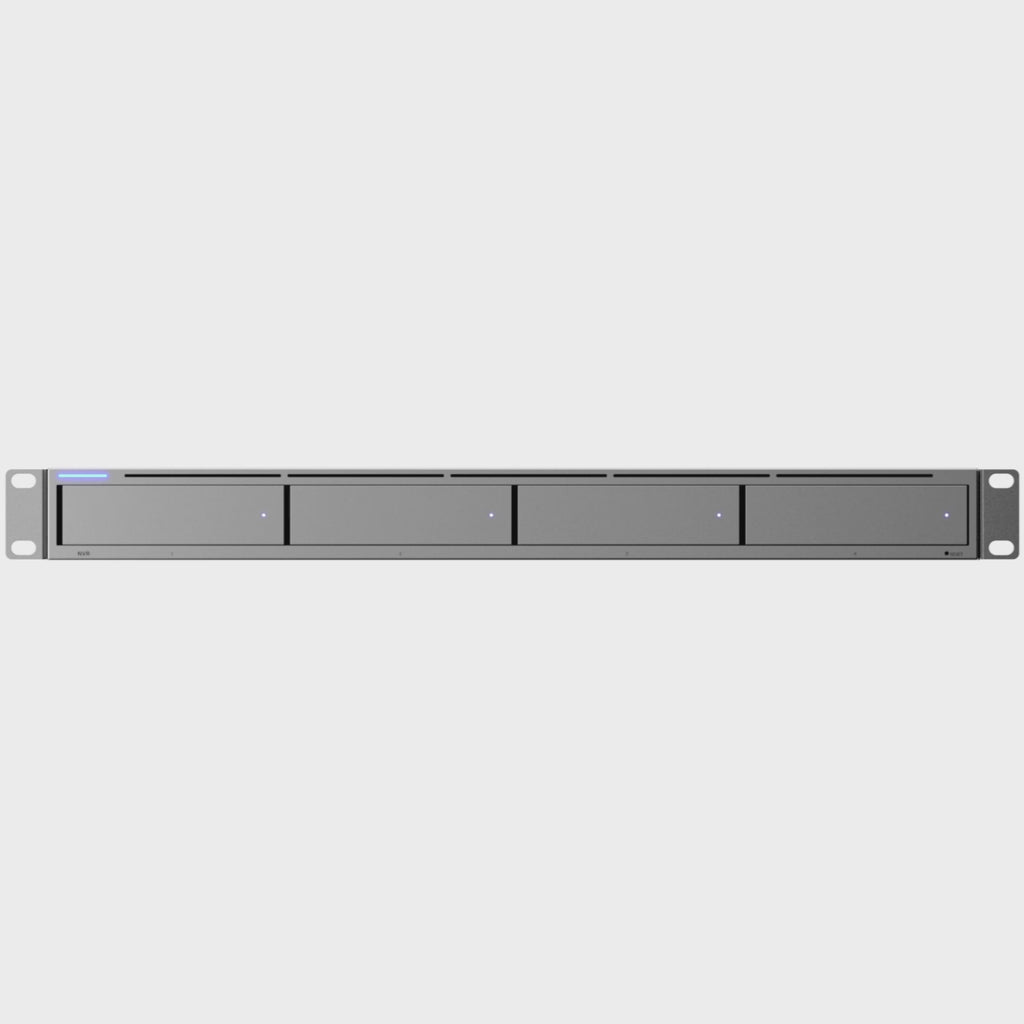

The Ubiquiti Network Video Recorder UNVR is an enterprise-grade 1U rack-mountable surveillance solution designed for robust UniFi Protect deployments. Featuring four 2.5"/3.5" HDD/SSD drive bays with automated RAID data protection, it delivers scalable, reliable storage capable of supporting up to 30 days of continuous recording for 18 4K cameras, 30 2K cameras, or 60 Full HD cameras.

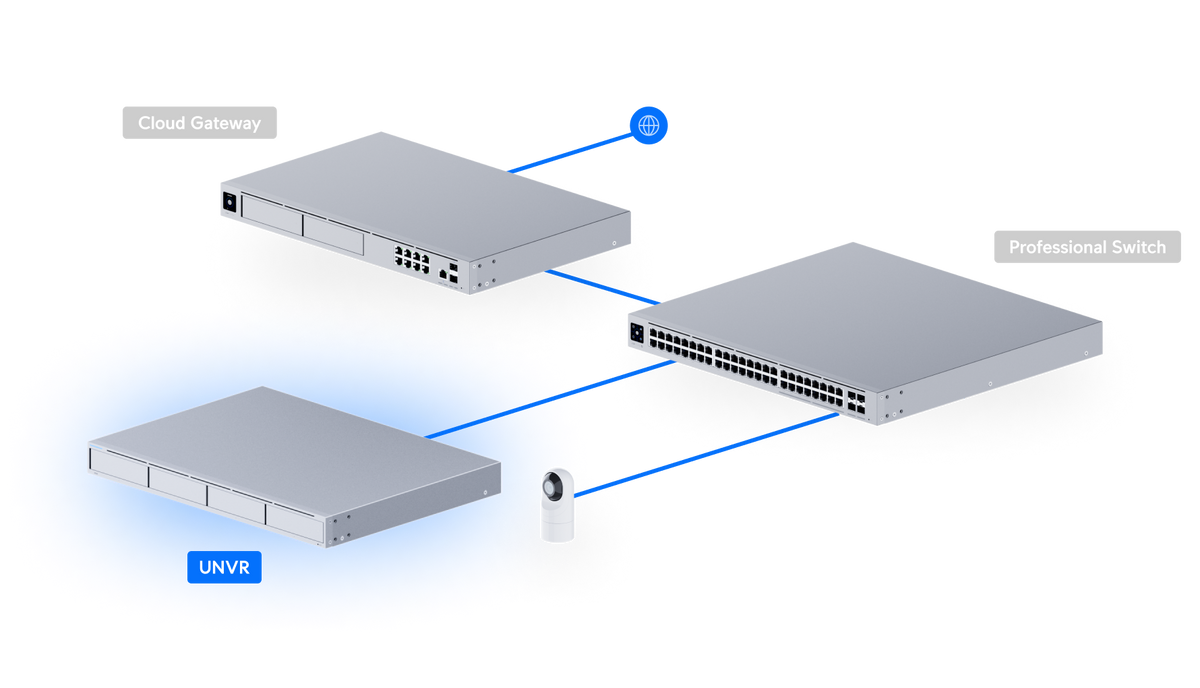

Equipped with a high-speed 10G SFP+ uplink and a GbE RJ45 network port, the UNVR seamlessly integrates into high-bandwidth network environments to eliminate video streaming bottlenecks. Its durable SGCC steel enclosure supports redundant DC power backup for uninterrupted enterprise operation and physical security management.
Key Features
| Brand | Ubiquiti |
| Model | UNVR |

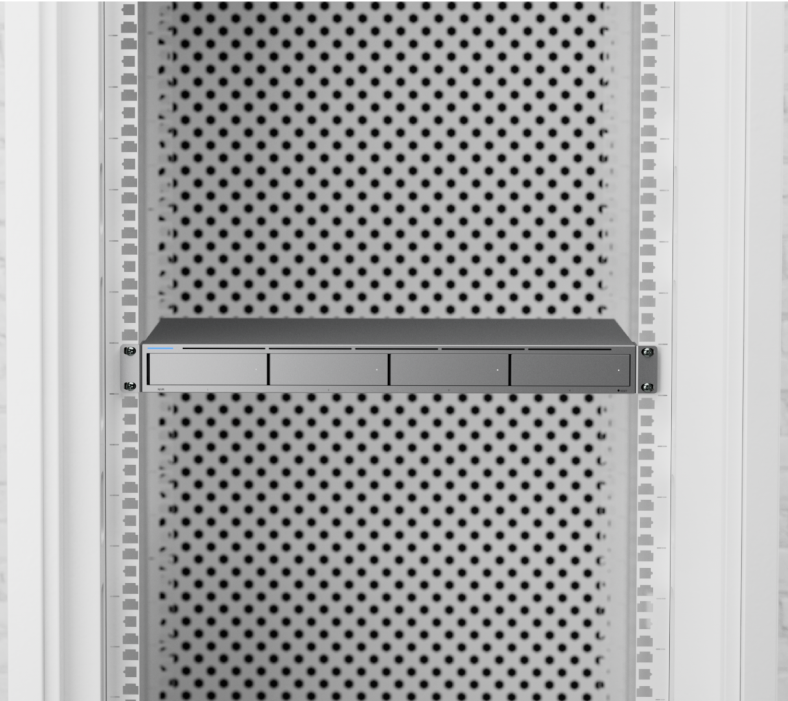

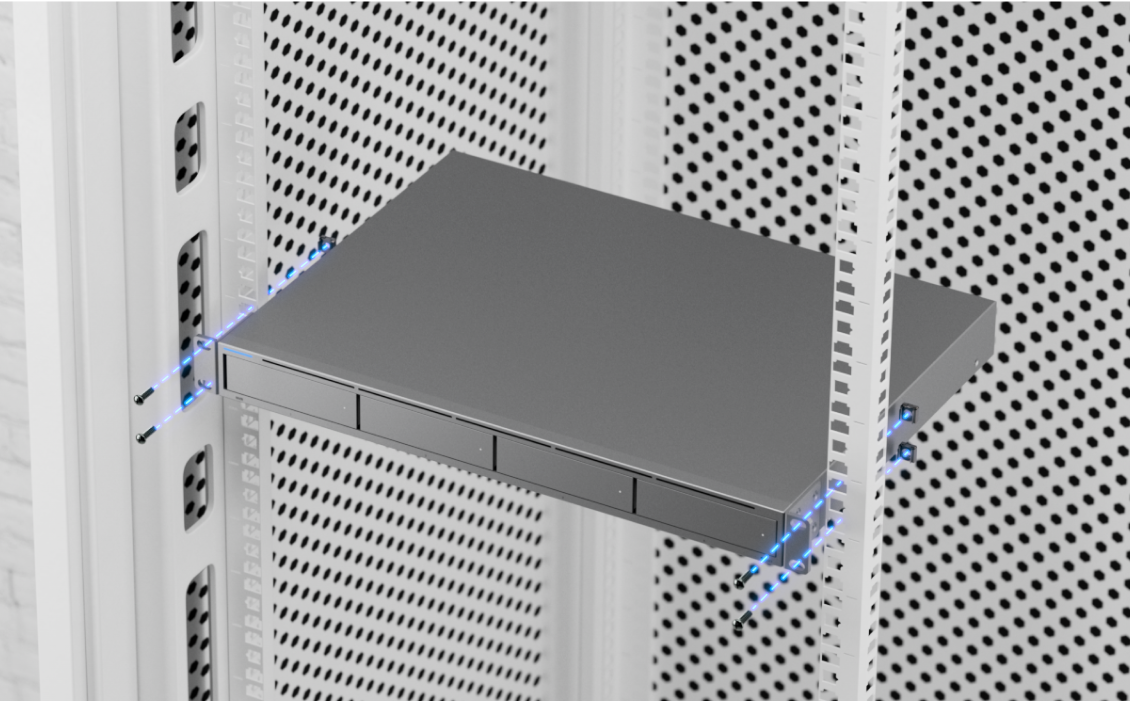

| Form Factor | 1U Rackmount |
| Hard Drive Bays | (4) 2.5"/3.5" HDD / SSD |

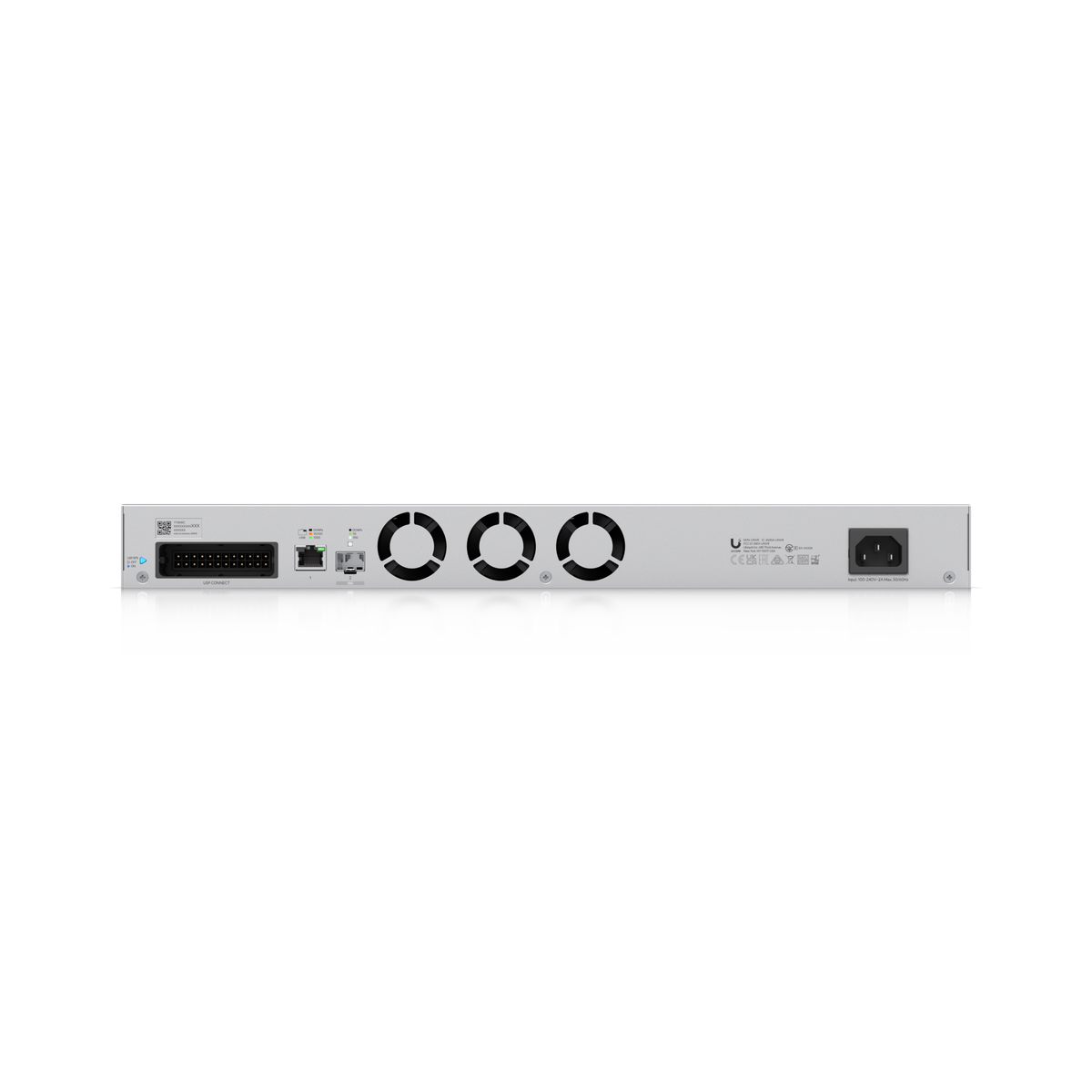

| Networking Interfaces | (1) 10G SFP+ port, (1) GbE RJ45 port |
| Camera Capacity | (18) 4K cameras, (30) 2K cameras, (60) Full HD cameras |
| Access Hub Capacity | 150+ |
| Processor | Quad ARM® Cortex®-A57 cores at 1.7 GHz |
| Memory | 4 GB |

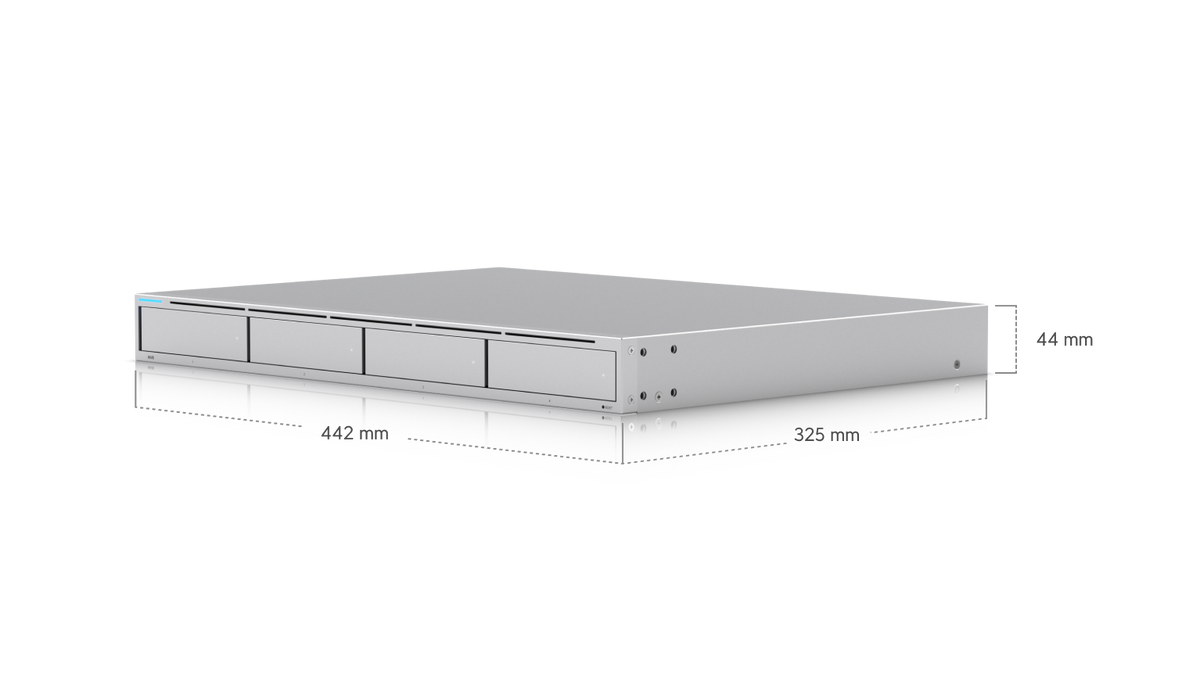

| Dimensions | 442 x 325 x 44 mm |
| Weight | 5.1 kg (Without brackets), 5.2 kg (With brackets) |
| Enclosure Material | SGCC steel |
| Power Supply | Internal 120W AC/DC |
| Max. Power Consumption | 100W |
| Power Redundancy | USP-RPS DC input supported |
| Data Protection | Configurable RAID |
| Management Applications | UniFi Protect, UniFi Access, UniFi Connect |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, SRRC, Anatel |
Highlights

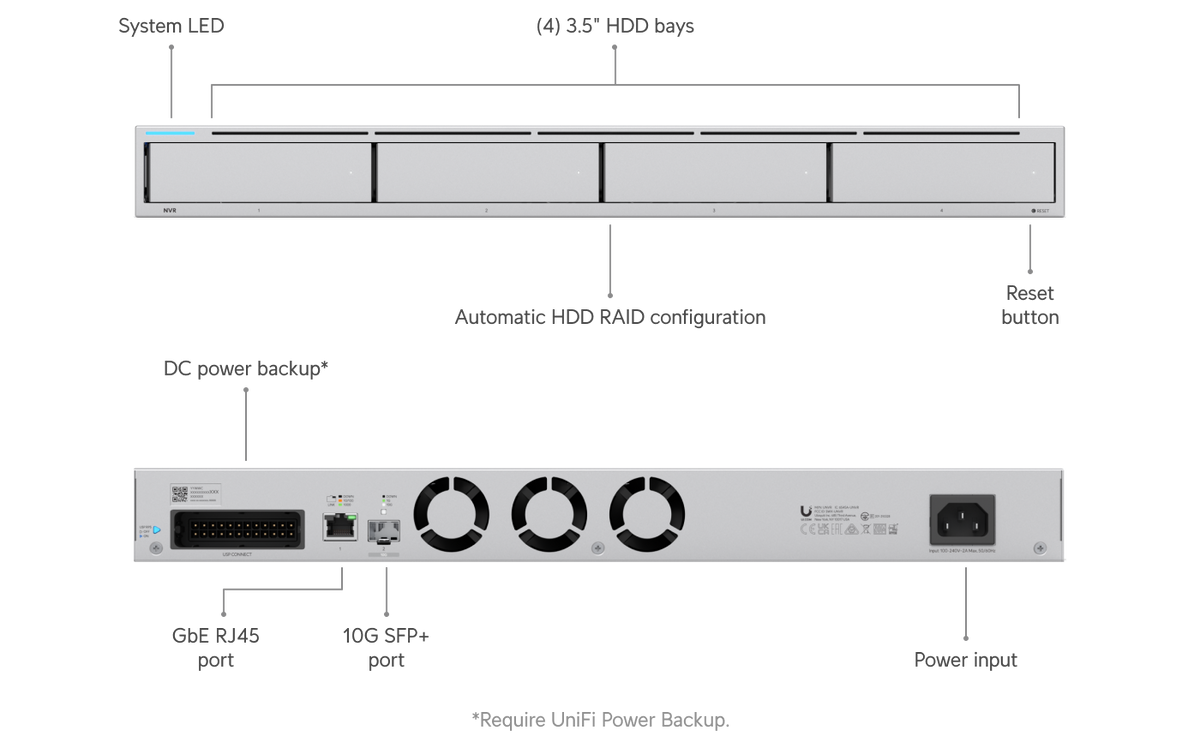

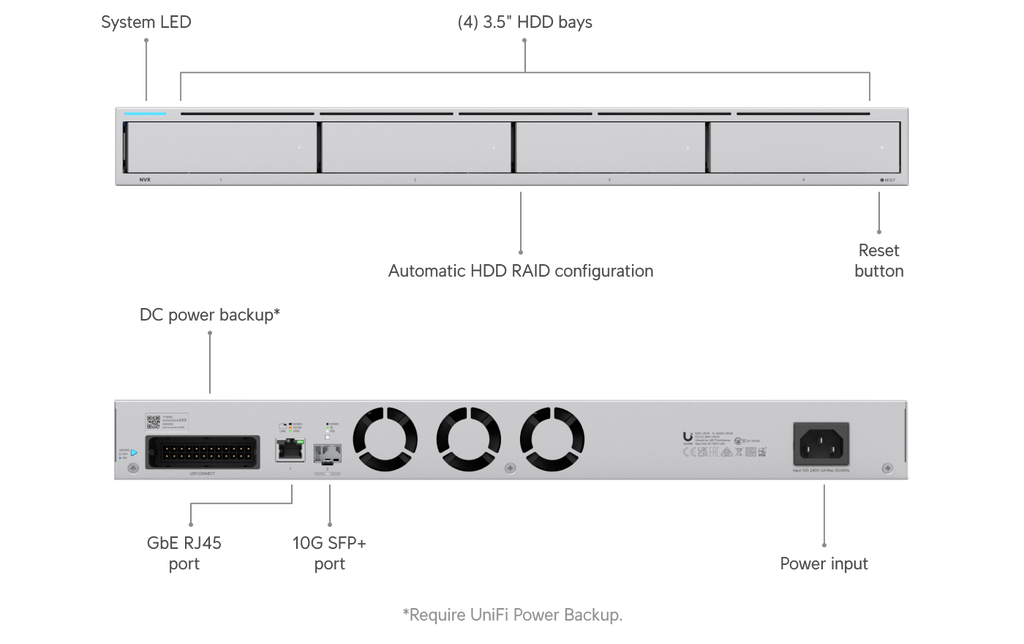

(4) 3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
DC power backup-ready
Videos
Compatibility
Compatible with UniFi Protect cameras, UniFi Access devices (supporting 150+ access hubs), UniFi Connect, and the UniFi SmartPower Redundant Power System (USP-RPS).
