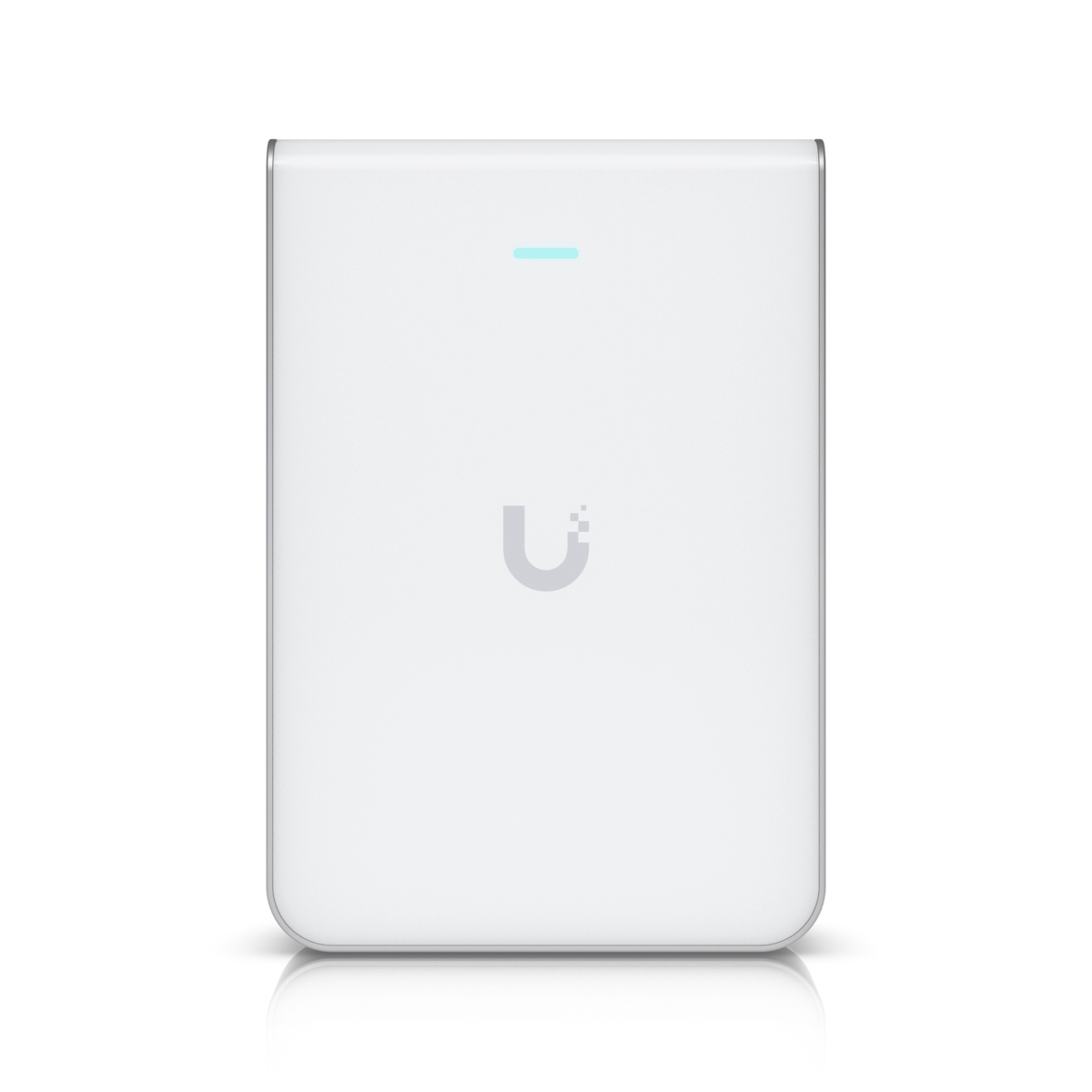

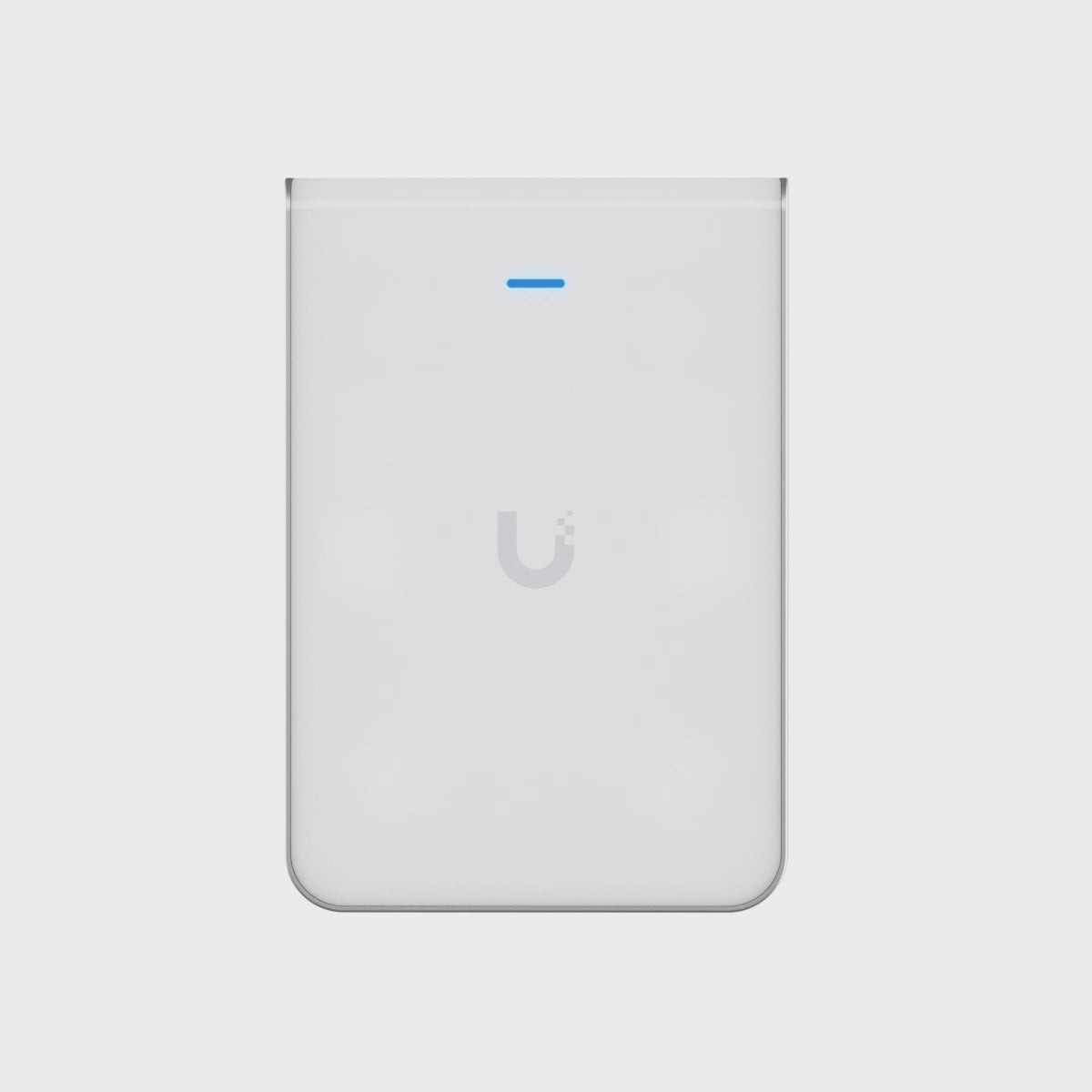

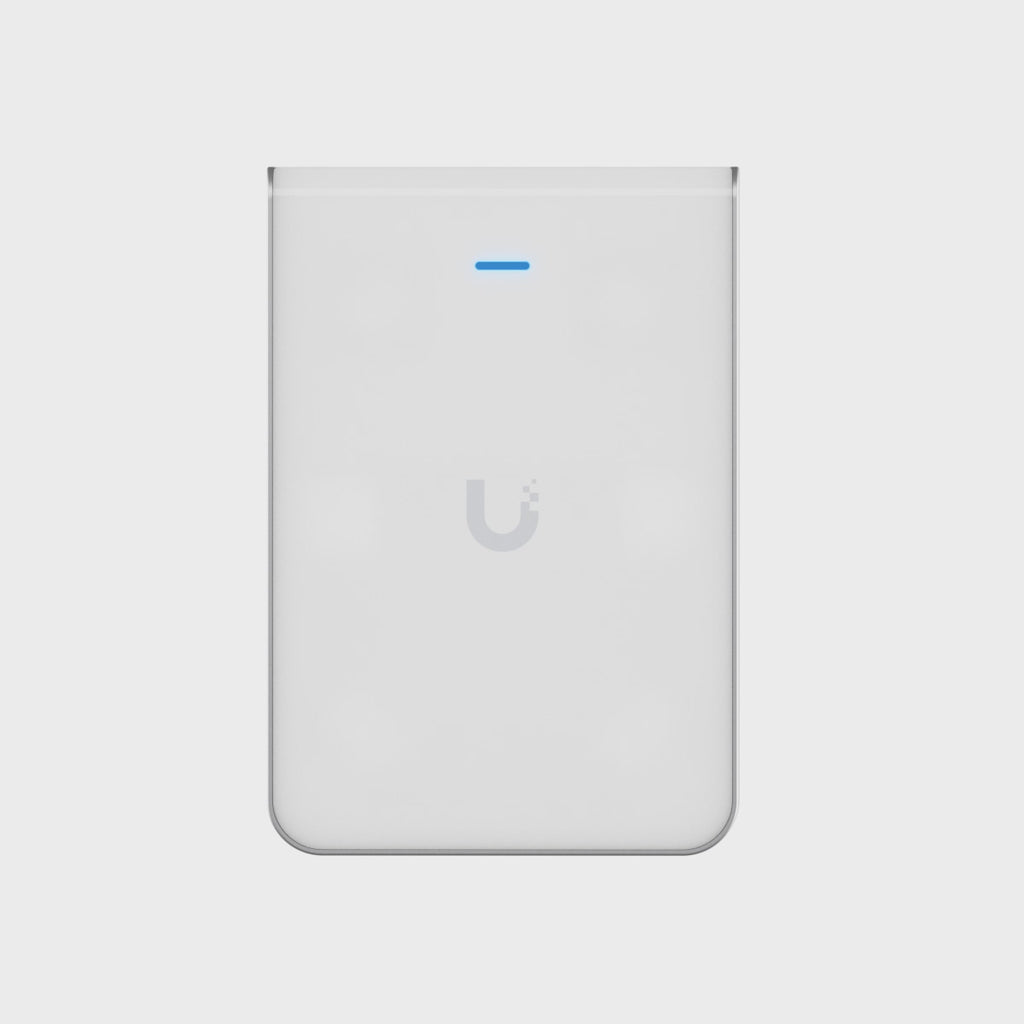

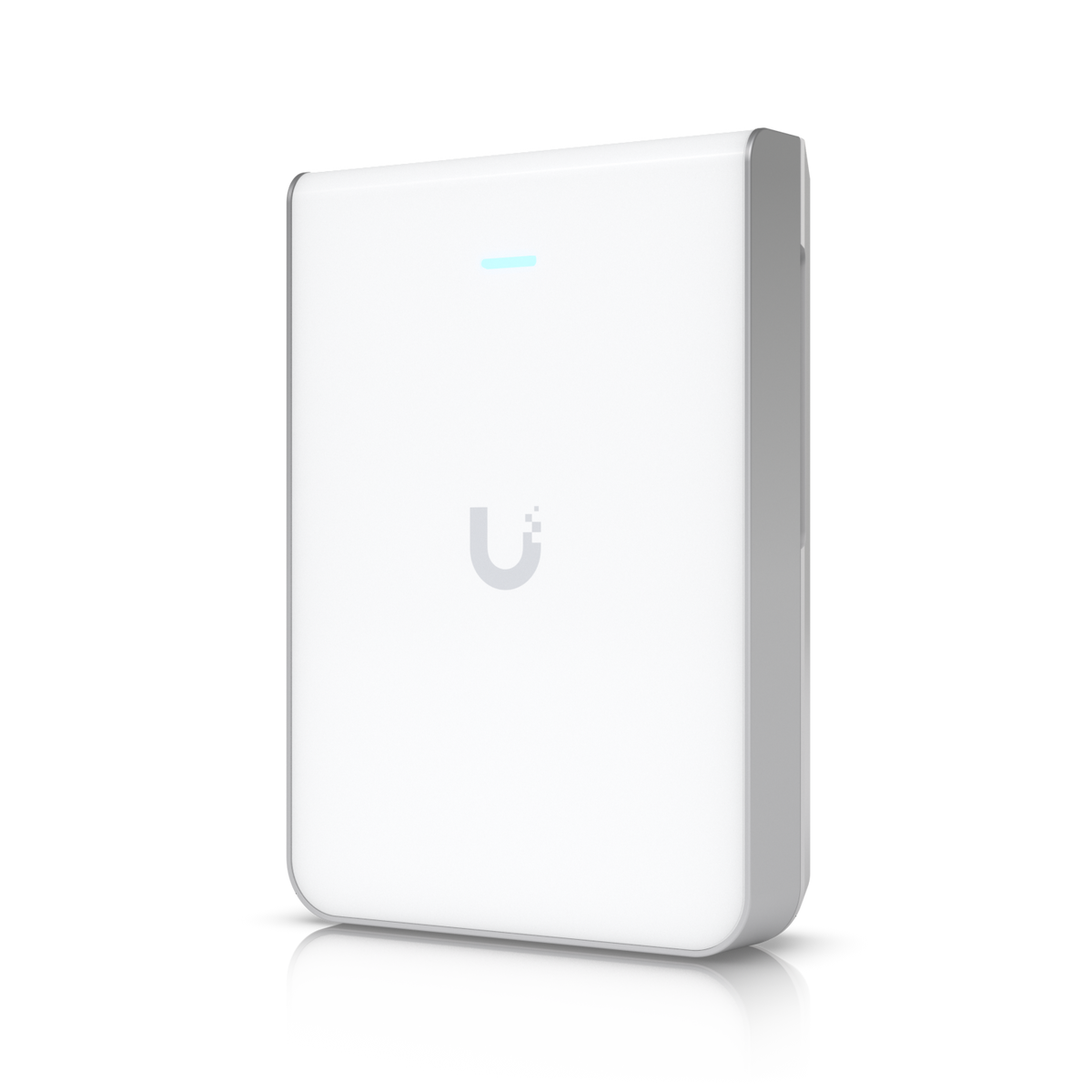

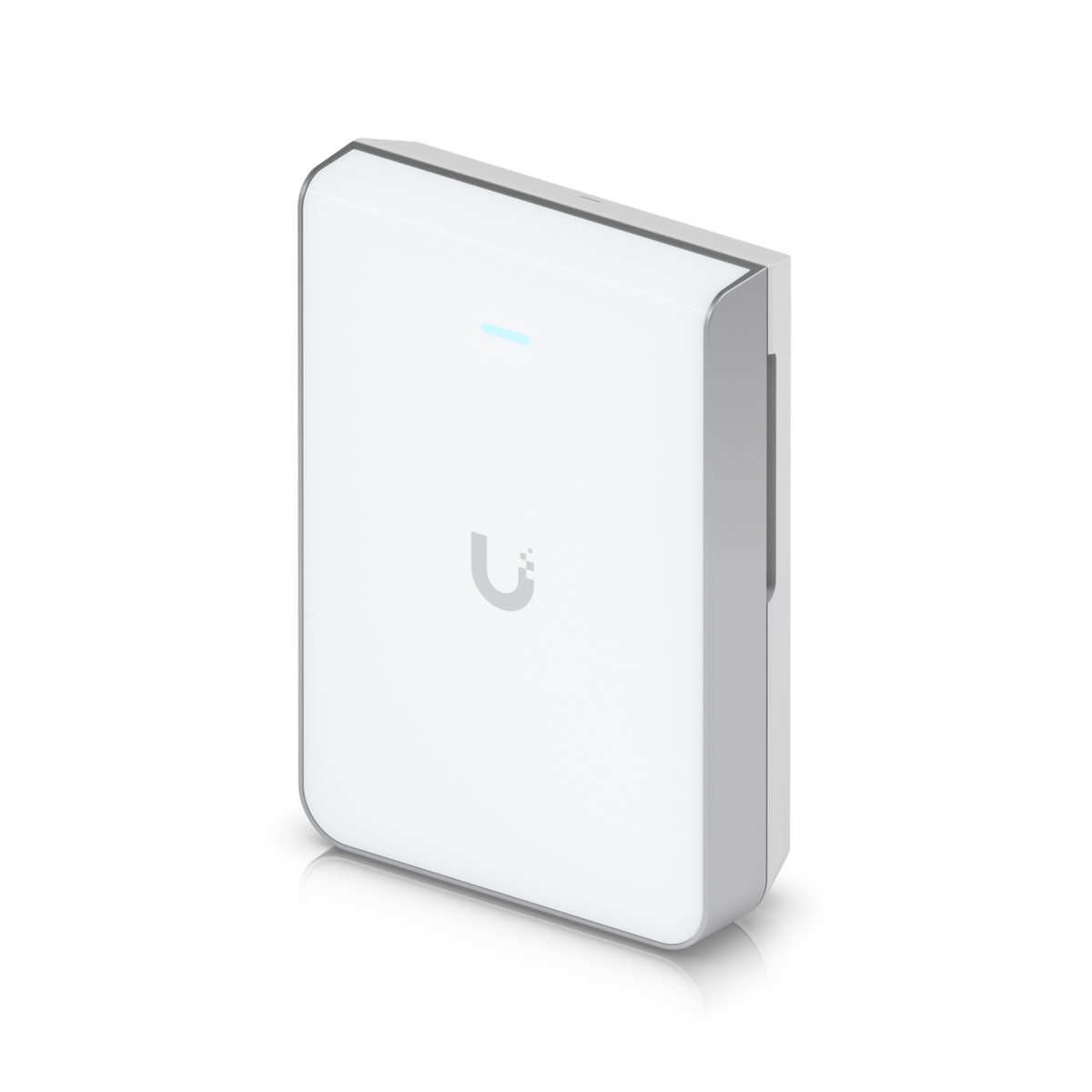

The Ubiquiti Access Point U7 Pro Wall delivers next-generation WiFi 7 performance featuring 6 spatial streams and dedicated 6 GHz radio support. Designed for high-density environments, it supports over 300 connected devices and delivers data coverage up to 140 m².
Equipped with a high-speed 2.5 GbE uplink and powered conveniently via PoE+, this sleek wall-mounted access point offers streamlined deployment for modern homes and commercial spaces. High-performance aluminum and polycarbonate construction ensures reliable operation and seamless wall integration.
Key Features
| Brand | Ubiquiti |
| Model | U7-Pro-Wall |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² |
| Max. Client Count | 300+ |

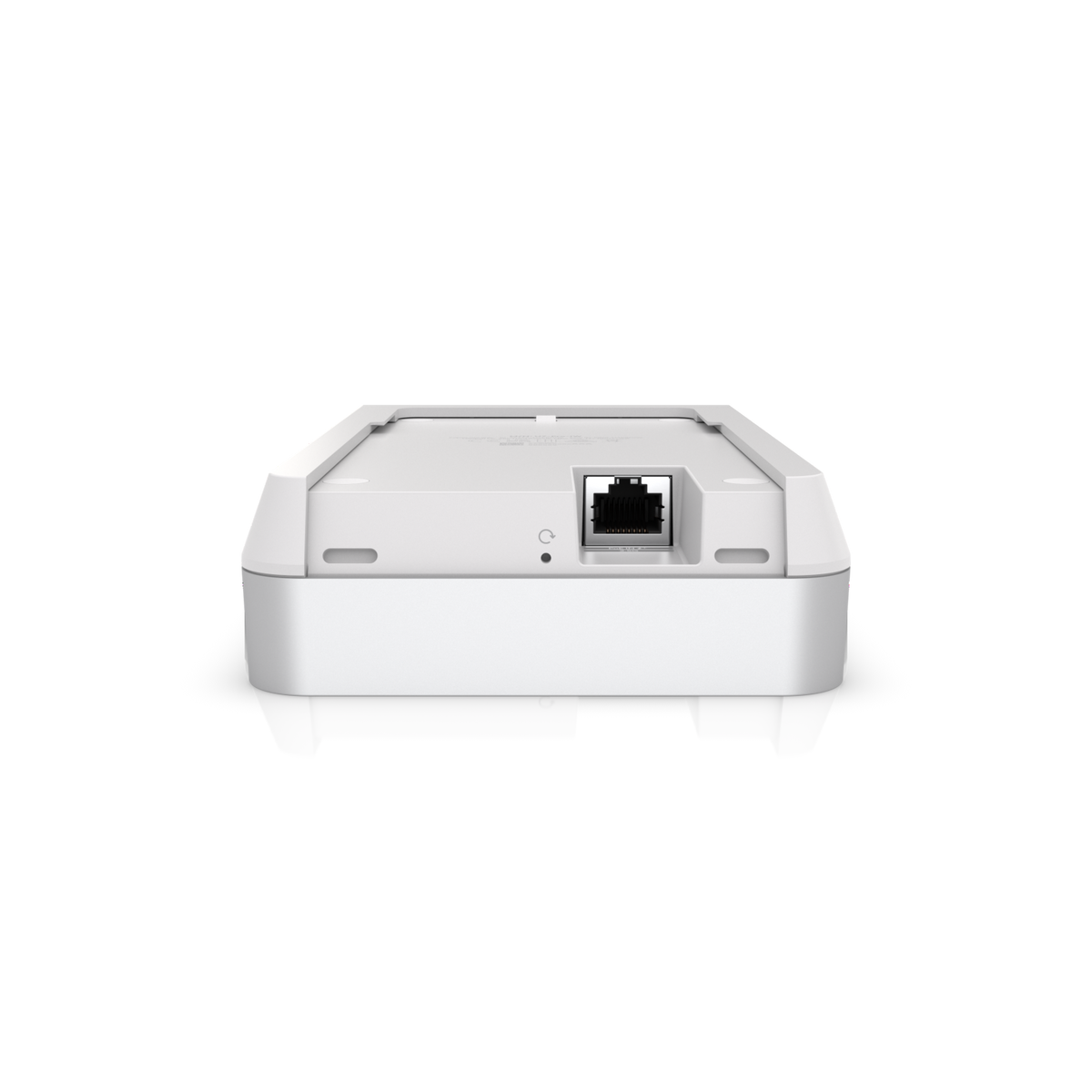

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Power Method | PoE+ |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 22W |
| Max. Data Rate | 5.8 Gbps (BW320) |
| MIMO | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | 6 dBi |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| Dimensions | 150 x 103 x 36 mm |
| Weight | 580 g |
| Operating Temperature | -30 to 60° C |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 10022-24-08356 |
Highlights
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile deployment with optional Flush Mount and Table Stand accessories
Videos
Compatibility

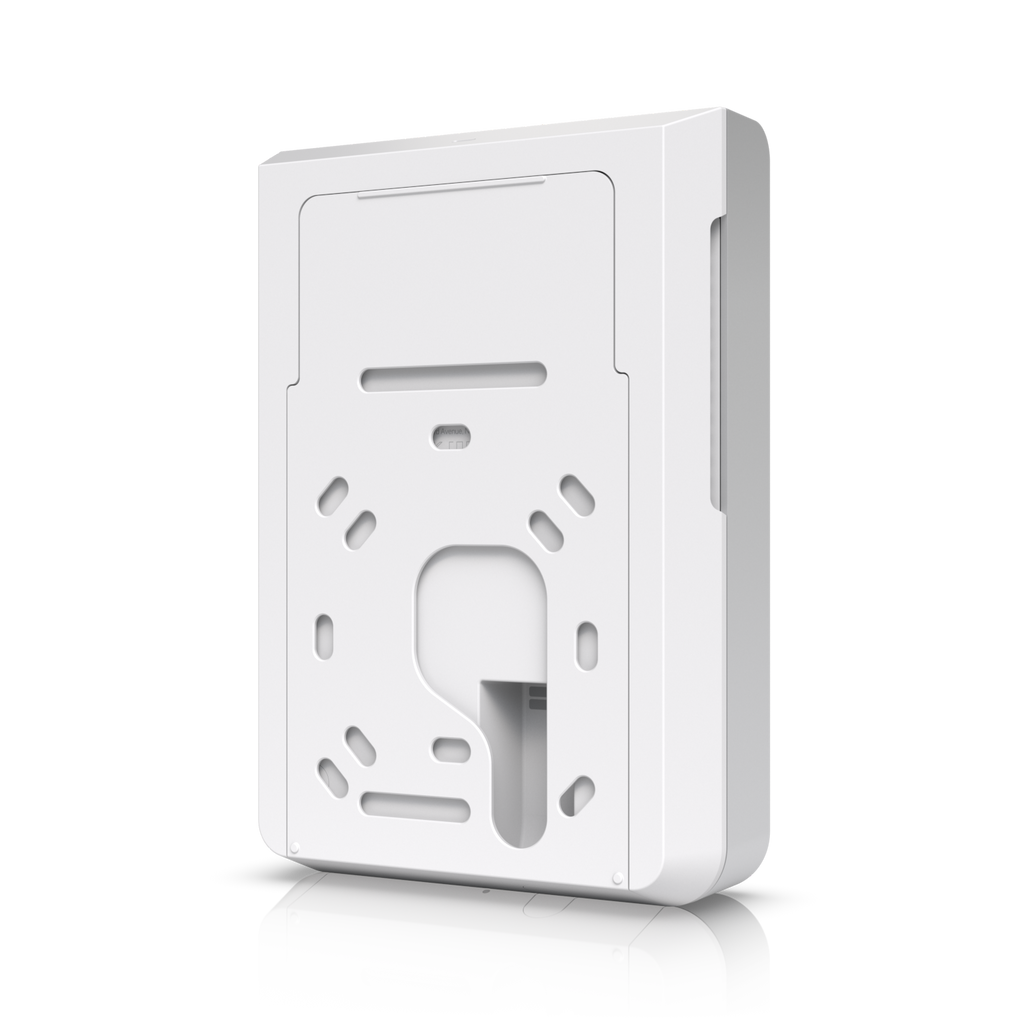

Requires UniFi Network application version 8.1.113 or later. Compatible with standard wall mounts as well as optional Flush Mount and Table Stand accessories.
