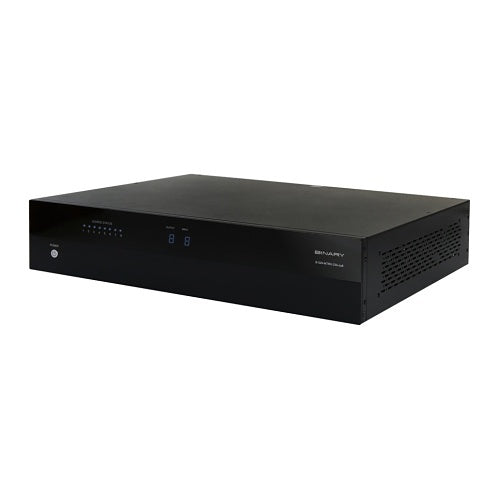

The Binary 520 Series 8x8 HDMI Matrix Switcher delivers reliable signal routing across commercial and residential AV installations. Featuring Power over Cable (POC) functionality, it simultaneously sends power, HDMI signals, and bidirectional IR to connected receivers up to 70.1 m over a single Cat5e/6 cable.
Designed for streamlined control system integration, this 2U rack-mountable matrix switcher includes robust Ethernet, RS-232, and IR routing capabilities. Built-in ESD and surge protection safeguard your equipment, ensuring dependable operation throughout demanding multi-display environments.
Key Features
Brand
Binary
Model
B-520-MTRX-230-8X8
Product Series
520 Series
Product Type
Matrix Switcher
Configuration
8x8
Transmission Distance
Up to 70.1 m (230 ft)
Cabling Requirement
Cat5e/Cat6 (Shielded recommended)
Control Interfaces
Ethernet, RS-232, IR Routing
Total HDMI Ports
16
Power Features
Power over Cable (POC)
Power Consumption
50 W
Rack Unit
2U
Dimensions
44 cm x 8.8 cm x 32 cm
Weight
5.2 kg
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operating Humidity
20% - 90% (Non-condensing)
Certifications
CE, FCC, RoHS
Highlights
8x8 HDMI Matrix Switcher with POC
Supports HDMI and HDBaseT Outputs
Control system integration with Ethernet, RS-232, and IR routing
Transmits HDMI signals up to 230 ft over Cat5e/6
Includes rack ears for easy mounting
2-Year Limited Warranty
Shielded cable recommended for maximum reliability
Built-in ESD and surge protection
Compatibility
Compatible with standard HDMI sources and displays, HDBaseT receivers supporting POC, Cat5e/6 infrastructure, and third-party control systems via RS-232, Ethernet, or IR.
Warranty
2-Year Limited Warranty: This product has a 2-year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty does not apply to products that have been abused, modified, or disassembled.
