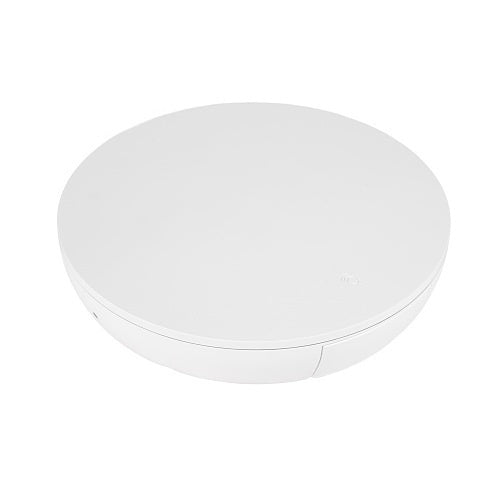

The Araknis Networks 530 is a mid-range Wi-Fi 7 tri-band 2x2x2 indoor access point engineered to deliver high-performance wireless connectivity for modern residential and light commercial networks. Featuring multi-gig throughput, a 10Gbps LAN uplink, and clean 6 GHz channels, it effectively eliminates bottlenecks to support high-demand streaming, conferencing, and smart automation systems.
Built with enterprise-grade WPA3 security and integrated OvrC support, this access point enables seamless remote management, automated AI channel tuning, and real-time network troubleshooting. It features a Wireless Bridge Mode for flexible coverage expansion and requires 60W PoE (802.3bt) for full operational performance.
Key Features
Brand
Araknis Networks
Model Number
AN-530-AP-I-1
Product Series
530
Product Type
Access Point
Wi-Fi Generation
Wi-Fi 7
Wireless LAN Standard
802.11be
Wireless Operating Frequency
2.4GHz, 5GHz, 6GHz
Network Technology
10GBase-T
Antenna Gain
7dBi
Encryption Standard
AES, WPA3
Dimensions
18.6 x 18.6 x 4 cm
Weight
0.9 kg
Power Consumption
28.56W
Input Voltage
12V 4A DC
Power over Ethernet (PoE)
Yes (Requires 60W PoE 802.3bt for full functionality)
Operating Temperature
0 to 50°C
Storage Temperature
-30 to 70°C
Operating Humidity
90% (Non-condensing)
Country of Origin
Taiwan, Province of China
Highlights
Mid-range Wi-Fi 7 tri-band 2x2x2 indoor access point
Supports multi-gig throughput for faster streaming and conferencing
Provides ultra-low latency for real-time cloud apps and smart systems
10Gbps LAN uplink removes bottlenecks to deliver full Wi-Fi 7 speeds
Concurrent tri-band 2x2x2 antennas maximize coverage and throughput on all three bands
Enterprise-grade WPA3 security protects user data and connections
Automated AI-powered channel tuning optimizes performance in minutes
Wireless Bridge Mode extends coverage to remote areas without Ethernet
Backward compatible with Araknis Wi-Fi 6 access points for mixed deployments
Compatibility
Backward compatible with Araknis Networks Wi-Fi 6 access points for seamless integration into existing networks.
Warranty
2-Year Limited Warranty: This Araknis product has a 2-Year Limited Warranty.
