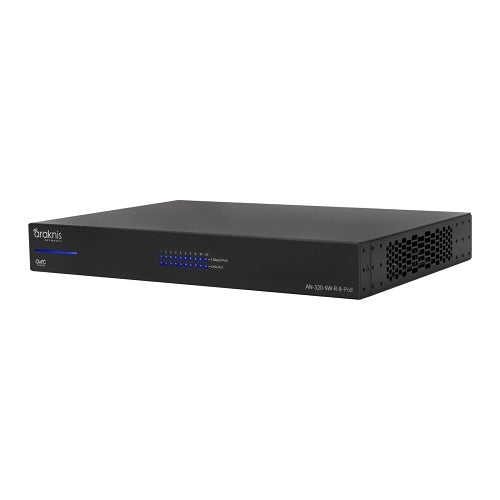

The Araknis Networks 320 Series managed Gigabit switch delivers powerful and reliable Layer 2 network control across all rear-facing ports. Full PoE+ capability provides up to 30W per port and up to 15W simultaneously across all ports, easily powering demanding installations. Integrated front and rear LEDs provide instant port status visibility, while multi-speed fans with temperature sensors and honeycomb venting ensure efficient thermal management.
Equipped with enhanced memory, the switch automatically identifies connected devices and integrates seamlessly with OvrC for cloud-based remote monitoring and troubleshooting. Configuration is straightforward thanks to an improved graphical user interface offering intuitive VLAN and Link Aggregation setup alongside detailed transfer and power telemetry. The compact 1U form factor supports versatile rack, wall, or desktop mounting.
802.1x PNAC, ACL (L2/L3/L4), HTTPS/SSL, IP Source Guard, MAC Filter, Port Security, RADIUS, SSH v2.0
Power Consumption
42W
Dimensions (W x H x D)
44 cm x 4.4 cm x 41 cm
Rack Width
48.3 cm
Rack Depth
40.6 cm
Form Factor
1U Rack Mountable
Operating Temperature
0°C - 50°C
Operating Humidity
10-90%
Certifications
CE, FCC, UL
Country of Origin
Taiwan
Highlights
OvrC Capability: The Araknis 320 switch features enhanced memory compared to previous generations, allowing for automatic identification of connected devices on each port and support for OvrC functionality.
Fully Managed: This switch provides a full Layer 2 managed solution designed to handle complex and robust network installations.
1Gbps Performance: Supports 1Gbps on all ports simultaneously, suitable for network backbones or desktop applications.
Full PoE+: Features PoE-capable ports providing up to 30W per port and up to 15W on all ports simultaneously.
Improved GUI: Includes a clear interface for VLAN and Link Aggregation setup, providing performance data, data transfer metrics, and power draw insights.
Multi-Speed Fans: Features a honeycomb venting design and temperature sensors that adjust fan speed for efficient temperature control.
Multi-Mounting: Designed with a 1U form factor for rack or wall mounting. Includes rack ears for left-justified installation, with optional center-mount rack ears available.
Mechanical Design: Plug-and-play functionality for simplified network configuration.
