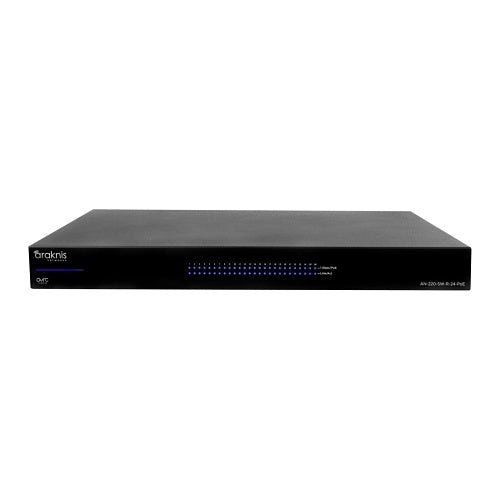

The Araknis Networks AN-220-SW-R-24-POE Managed Layer 2 Gigabit Switch delivers robust connectivity with 1 Gbps throughput across every port. Designed with rear-facing ports and a sleek 1U form factor, it integrates smoothly into standard equipment racks while maintaining a clean, professional aesthetic.
Featuring PoE+ support delivering up to 30W per port alongside full cloud integration via OvrC, this switch simplifies deployment and continuous monitoring. Technicians can remotely configure settings, update firmware, and troubleshoot connected devices from anywhere using the intuitive interface.
Key Features
Brand
Araknis Networks
Model Number
AN-220-SW-R-24-POE
Product Series
220 Series
Product Type
Managed Layer 2 Switch
Switch Type
PoE+
Total Network Ports
24
Port Speed
1 Gbps
Power over Ethernet (PoE)
Yes (PoE+ up to 30W per port)
Power Consumption
417W
Form Factor
1U Rackmount
Dimensions
44 cm x 4.4 cm x 41 cm
Rack Width
48.3 cm
Rack Depth
40.6 cm
Operating Temperature
0°C - 50°C
Operating Humidity
10-90%
Management Platform
OvrC, Web GUI, Dual FW Image, TFTP/HTTP FW Upgrade, Port Mirroring, SNTP
Certifications
CE, FCC, UL
Compatibility
Control4
Highlights
24-Port Managed Layer 2 Gigabit Switch
Partial PoE+ with up to 30W per port
1 Gbps speed on all ports
User-friendly GUI for management
Remote management via OvrC
Plug-and-play capability
Multiple mounting options
Sleek 1U design
Compatibility
Compatible with Control4 automation systems and managed through the OvrC cloud platform.
